100G CWDM QSFP28 Single Lambda

1 / 1

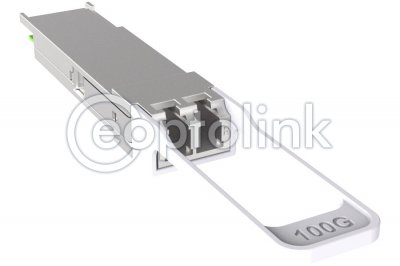

100G CWDM QSFP28 Single Lambda

QSFP28 FR Single Lambda CWDM 100G PN: EOLQ-161HG-O-02-XX

Eoptolink’s EOLQ-161HG-O-02 QSFP28 FR 100G Optical transceiver module are designed for use in 100 Gigabit Ethernet links over 2km single mode fiber. They are operating on a single CWDM wavelength(1271nm/1291nm/1311nm/1331nm), compliant with the QSFP28 MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.

QSFP28 LR Single Lambda CWDM 100G PN: EOLQ-161HG-O-10-XX

Eoptolink’s EOLQ-161HG-O-10 QSFP28 LR 100G Optical transceiver module are designed for use in 100 Gigabit Ethernet links over 10km single mode fiber. They are operating on a single CWDM wavelength(1271nm/1291nm/1311nm/1331nm), compliant with the QSFP28 MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.

Operate on Single CWDM lambda 100G
Supports 103 / 112Gbps aggregate bit rates
Single 3.3V Power Supply and Industry Lowest Power dissipation
Hot-Pluggable QSFP form factor
1271/1291/1311/1331 wavelength, with other wavelength are coming in the future
RoHS Compliant
Operating Case Temperature Standard: 0°C~+70°C
Compliant with QSFP28 MSA Specification
I2C interface with integrated Digital Diagnostic Monitoring

Part No.	Description	Data Rate	Wavelength	Distance	Connector	Temp.
EOLQ-161HG-O-02-XX	CWDM QSFP28 FR	1×100G	1271/1291/1311/1331	2km	LC	C
EOLQ-161HG-O-10-XX	CWDM QSFP28 LR	1×100G	1271/1291/1311/1331	10km	LC	C

For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
