800G

  1. You are here:
  2. Home
  3. Product solutions
  4. 800G
  5. 800G QSFP-DD800
QSFP-DD 2x400G FR4
QSFP-DD 2x400G FR4
1 / 6
QSFP-DD 2x400G LR4
2 / 6
QSFP-DD 8x100G DR
3 / 6

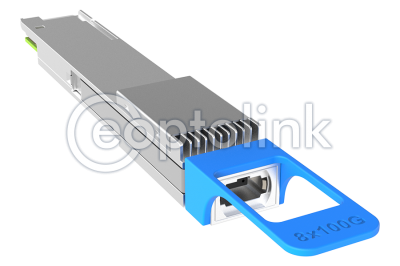

QSFP-DD 8x100G LR
4 / 6

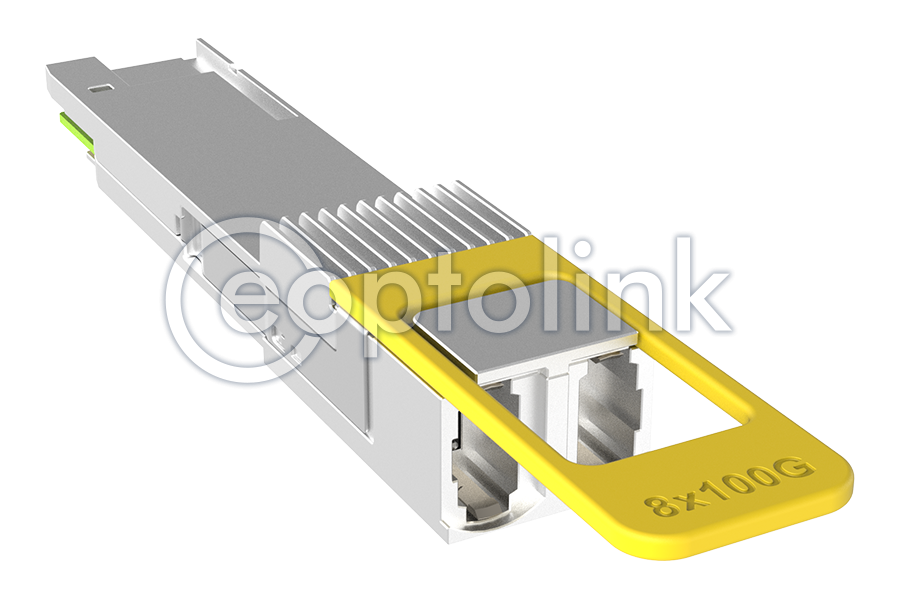

QSFP-DD 8x100G DR
5 / 6

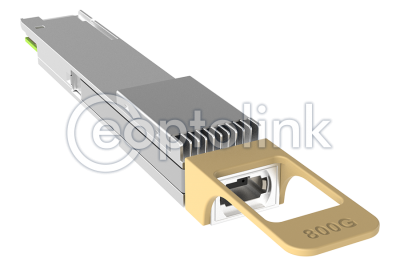

QSFP-DD 800G VR8
6 / 6

800G QSFP-DD800

Eoptolink 800G transceivers are compliant to the latest releases of the QSFP-DD800 MSAs. The firmware supports CMIS 5.0 and newer releases. We offer AOC, VR8, VR4.2, DR8, 2xFR4, 2xLR4 transceivers for different reach and applications. Our vertical integration for optical engines enables leading performance and power consumption.

    • Supports 2x 425Gb/s, 8x106.25Gb/s or 850Gb/s
    • QSFP-DD800 MSA Compliant
    • 8x106.25 Gb/s (PAM4) optical interface
    • 8x106.25 Gb/s (PAM4) electrical interface
    • 0°C to 70°C
    • CMIS 5.0 or higher support
    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLD-138HG-5H-XMX QSFP-DD 8x100G DR 8x100G 800GbE 1310nm 500m MPO-16 C
    EOLD-138HG-5H-DX QSFP-DD 8x100G DR 8x100G 800GbE 1310nm 500m Dual MPO-12 C
    EOLD-138HG-02-XMX QSFP-DD 8x100G FR 8x100G 800GbE 1310nm 2km MPO-16 C
    EOLD-138HG-02-DX QSFP-DD 8x100G FR 8x100G 800GbE 1310nm 2km Dual MPO-12 C
    EOLD-138HG-10-XMX QSFP-DD 8x100G LR 8x100G 800GbE 1310nm 10km MPO-16 C
    EOLD-138HG-10-DX QSFP-DD 8x100G LR 8x100G 800GbE 1310nm 10km Dual MPO-12 C
    EOLD-168HG-02-XX QSFP-DD 2x400G FR4 2x400GbE CWDM 2km Dual Duplex LC C
    EOLD-168HG-02-CX QSFP-DD 2x400G FR4 2x400GbE CWDM 2km Dual CS C
    EOLD-168HG-10-XX QSFP-DD 2x400G LR4 2x400GbE CWDM 10km Dual Duplex LC C
    EOLD-168HG-10-CX QSFP-DD 2x400G LR4 2x400GbE CWDM 10km Dual CS C
    EOLD-858HG-01-MX QSFP-DD 8x100G VR8 8x100G 800GbE 850nm 30m(OM3)
    50m(OM4)    		 MPO-16 C
    EOLD-BI858HG-01-DX QSFP-DD 8x100G VR4.2 8x100G 800GbE 850/910nm 30m(OM3)
    50m(OM4)    		 MPO-12 APC C

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
