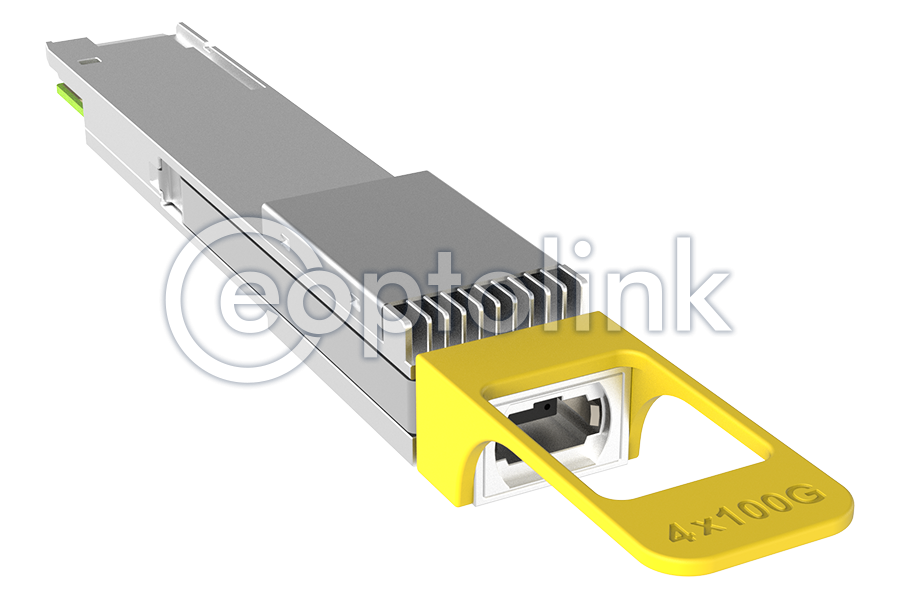

LPO QSFP112 400G VR4
LPO QSFP112 400G VR4
1 / 4

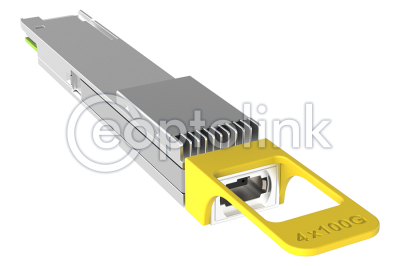

LPO QSFP112 400G DR4
2 / 4

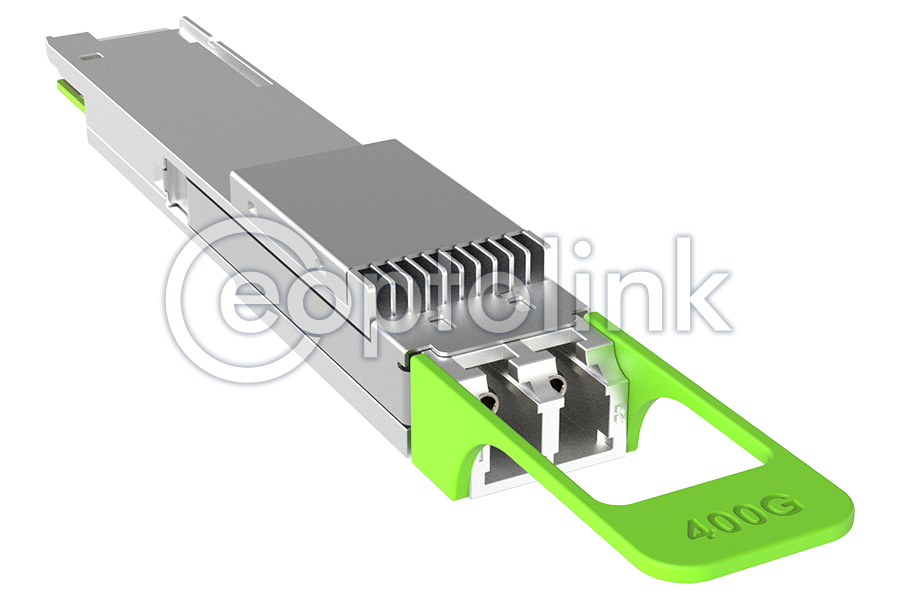

LPO QSFP112 400G FR4
3 / 4
LPO QSFP112 400G LR4
4 / 4

400G LPO QSFP112

Eoptolink QSFP112 400G LPO transceivers are compliant to the latest releases of the QSFP112 MSA. The firmware supports CMIS 5.0 and newer release. We offer transceivers for DR4, SR4 and FR4 interfaces. Our vertical integration for optical engines enables leading performance and per consumption.

    • Supports 425Gb/s
    • Single 3.3V Power Supply
    • QSFP112 MSA Compliant
    • 4x106.25Gbps (PAM4) electrical interface
    • Commercial case temperature range of 0°C to 70°C
    • CMIS 5.0 or later version
    Part No. Description Data Rate Wavelength Distance Connector T.range
    EOLQ-134HG-5H-MXLX QSFP112 400G DR4 4x100G 400GbE 1310nm 500m MPO-12 C
    EOLQ-854HG-02-MLX QSFP112 400G SR4 4x100G 400GbE 850nm TBD MPO-12 C
    EOLQ-164HG-02-SLX QSFP112 400G FR4 4x100G 400GbE CWDM 2km LC C

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
