The Eoptlink RJ miniature transceiver module is a high performance integrated full duplex data link for bi-directional communication over single mode or multimode optical fiber. It has been designed for use in space constrained applications, and offers the mandatory FC compliance commonly provided by SFF and SFP transceivers. This optoelectronic transceiver module is a Class 1 Laser product compliant with FDA Radiation Performance Standards, 21 CFR Subchapter J. This component is also Class 1 Laser compliant according to International Safety Standard IEC-825-1/EN 60825.
1 / 1

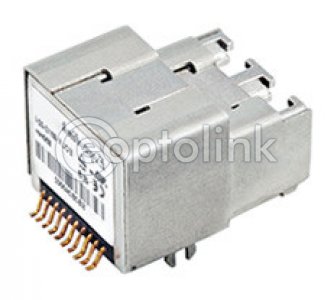

RJ low profile
- Industry Standard LC Connector Interface
- Metal housing
- 1G, 10G or MultiRare versions
- Industrial and Commercial Grade
- Single +3.3V Power Supply
- RoHS Compliant
Hazards of Extreme Conditions
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLJ-8512-02 | RJ Low Profile | ≥ 1.25Gbps | 850nm | 550m | LC | C |
| EOLJ-8512-02-I | RJ Low Profile | ≥ 1.25Gbps | 850nm | 550m | LC | I |
| EOLJ-1312-10 | RJ Low Profile | ≥ 1.25Gbps | 1310nm | 10km | LC | C |
| EOLJ-1312-10-I | RJ Low Profile | ≥ 1.25Gbps | 1310nm | 10km | LC | I |
| EOLJ-1312-20 | RJ Low Profile | ≥ 1.25Gbps | 1310nm | 20km | LC | C |
| EOLJ-1312-20-I | RJ Low Profile | ≥ 1.25Gbps | 1310nm | 20km | LC | I |
| EOLJ-1312-30 | RJ Low Profile | ≥ 1.25Gbps | 1310nm | 30km | LC | C |
| EOLJ-1312-30-I | RJ Low Profile | ≥ 1.25Gbps | 1310nm | 30km | LC | I |
| EOLJ-8596-02 | RJ Low Profile | 10.3G | 850nm | 550m | LC | C |
| EOLJ-8596-02-I | RJ Low Profile | 10.3G | 850nm | 550nm | LC | I |
| EOLJ-1396-10 | RJ Low Profile | 10.3G | 1310nm | 10km | LC | C |
| EOLJ-1396-10-I | RJ Low Profile | 10.3G | 1310nm | 10km | LC | I |
For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
