The EOLP-1625G-10-XR series optical transceiver is designed for fiber communications application up to 25.78Gbps, which fully compliant with the specification of SFF-8402.
This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are four center wavelengths available from 1271nm to 1331nm, with each step 20nm.It can communicate over single mode fibers (SMF) of length from 2m to at least 10km.
1 / 1

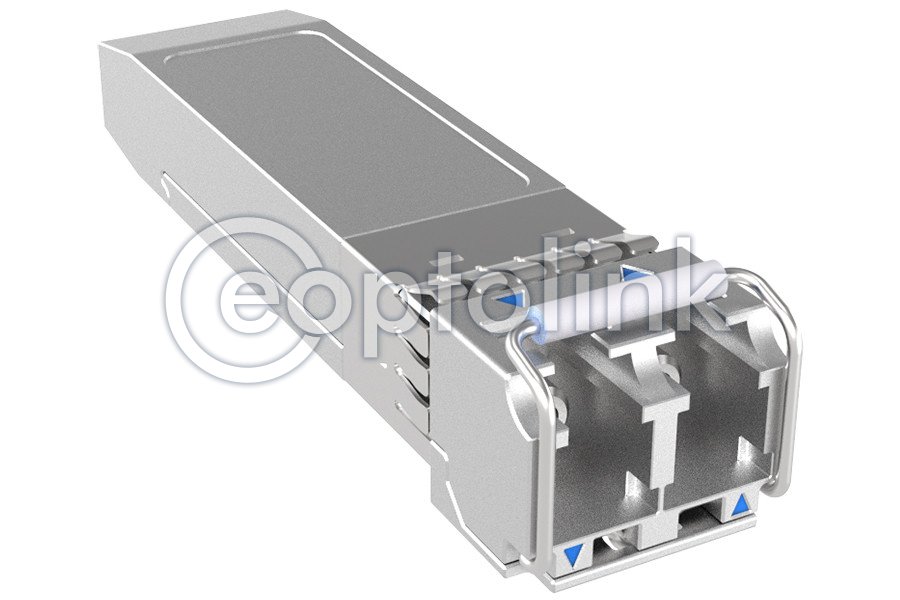

25G CWDM SFP28
- Operating Data Rate Support 24.33G and 25.78Gbps with CDR Engaged Mode
- Operating Data Rate Support 9.95Gbps and 10.31Gbps with CDR Bypassed Mode
- 4-Wavelength from 1271nm to 1331nm, with step 20nm
- Up to 10km over SMF
- Single 3.3V Power Supply
- Power Dissipation < 1.2W
- Built-in Dual CDR
- Compliant with Specification SFF-8402
- Build-in Digital Diagnostic Functions
- Standard 0°C~+70°C or Industrial -40°C~+85C case operation temperature rage
- Safety Certification: TUV/UL/FDA
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLP-1625G-10-XR | CWDM SFP28 | 25.78G | CWDM | 10km | LC | C |
| EOLP-1625G-10-XRI | CWDM SFP28 | 25.78G | CWDM | 10km | LC | I |
X refers to CWDM Wavelength range 1271nm to 1331nm, X=A~F, denotes 1271nm to 1370nm.
