Eoptolink’s 50G SFP56 BIDI LR,ER transceiver module is designed for 50 Gigabit Ethernet, operating up to 53.125Gbps with 10, 40 Kilometers link length on single mode fiber via a LC connector. The transceiver is also compatible with two rates: 10.3125Gbps / 25.78125Gbps. They are compliant with the SFP MSA and IEEE802.3cp. Digital diagnostics functions are available via the I2C interface, as specified by the SFP MSA.
1 / 4
2 / 4
3 / 4
4 / 4

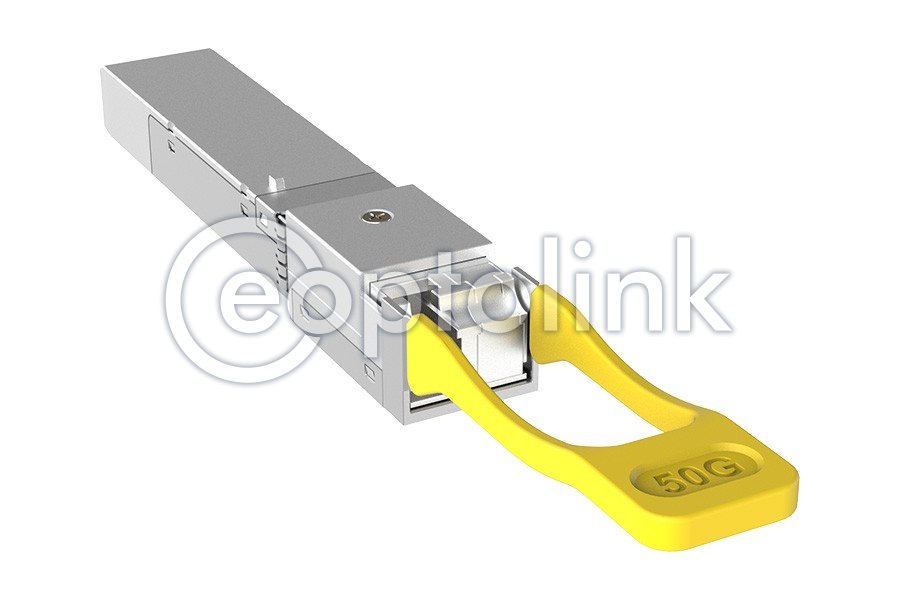

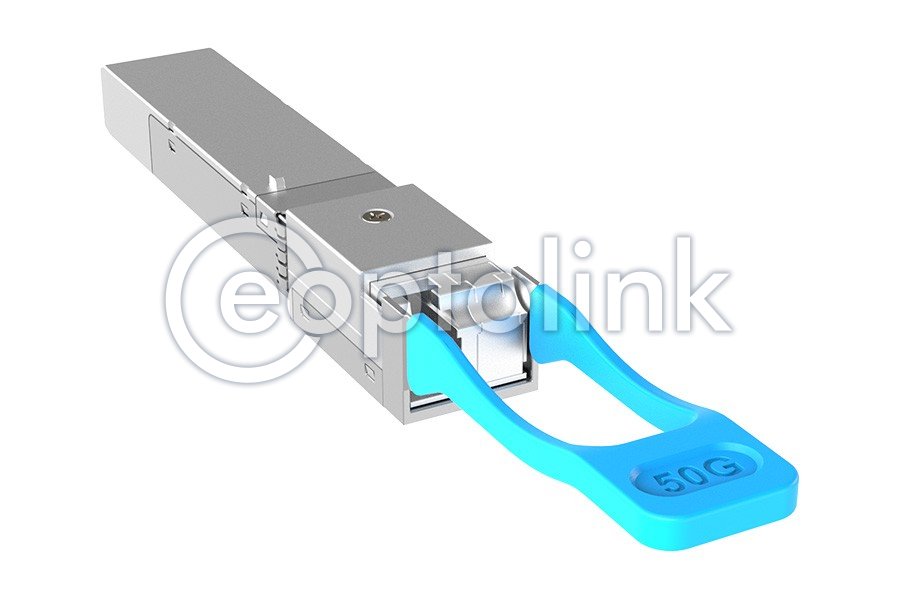

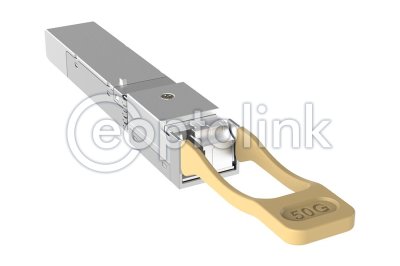

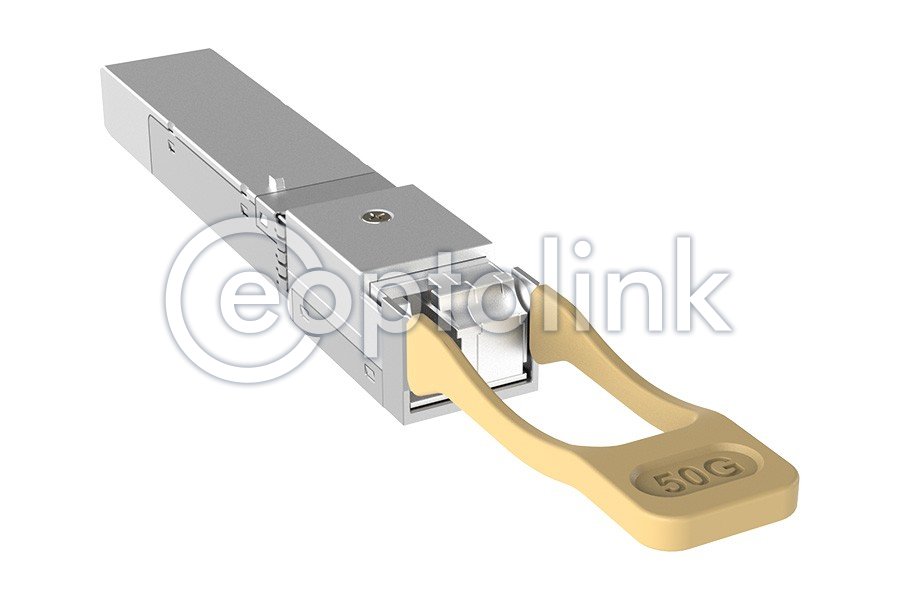

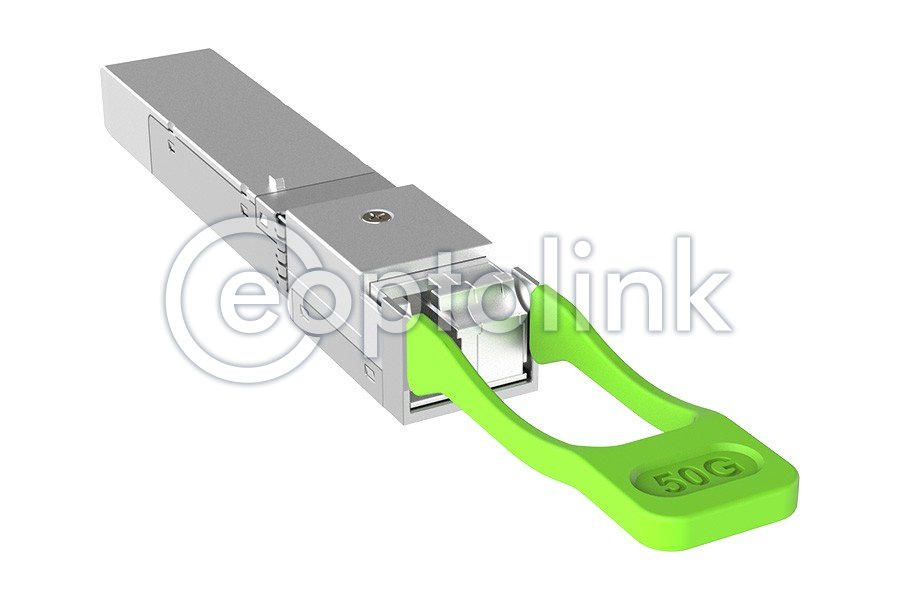

50G BIDI SFP56
- Supports 53.125Gbps/ 25.78125Gbps/10.3125Gbps
- Distance up to 10km,40km over SMF
- Bi-directional LC Connector, Hot Pluggable
- Standard 0°C to 70°C or Industrial -40°C to 85°C case operation temperature rage
- Single 3.3V Power Supply and Industry Lowest Power dissipation
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLP-BI1650G-10-A | 50G SFP56 BIDI LR | Up to 53.125Gbps | 1271/1331nm | 10km | LC | C |
| EOLP-BI1650G-10-D | 50G SFP56 BIDI LR | Up to 53.125Gbps | 1331/1271nm | 10km | LC | C |
| EOLP-BI1650G-10-AI | 50G SFP56 BIDI LR | Up to 53.125Gbps | 1271/1331nm | 10km | LC | I |
| EOLP-BI1650G-10-DI | 50G SFP56 BIDI LR | Up to 53.125Gbps | 1331/1271nm | 10km | LC | I |
| EOLP-BI1650G-40-B | 50G SFP56 BIDI ER | Up to 53.125Gbps | 1291/1311nm | 40km | LC | C |
| EOLP-BI1650G-40-C | 50G SFP56 BIDI ER | Up to 53.125Gbps | 1311/1291nm | 40km | LC | C |
| EOLP-BI1650G-40-BI | 50G SFP56 BIDI ER | Up to 53.125Gbps | 1291/1311nm | 40km | LC | I |
| EOLP-BI1650G-40-CI | 50G SFP56 BIDI ER | Up to 53.125Gbps | 1311/1291nm | 40km | LC | I |
