100G BIDI QSFP28 LR

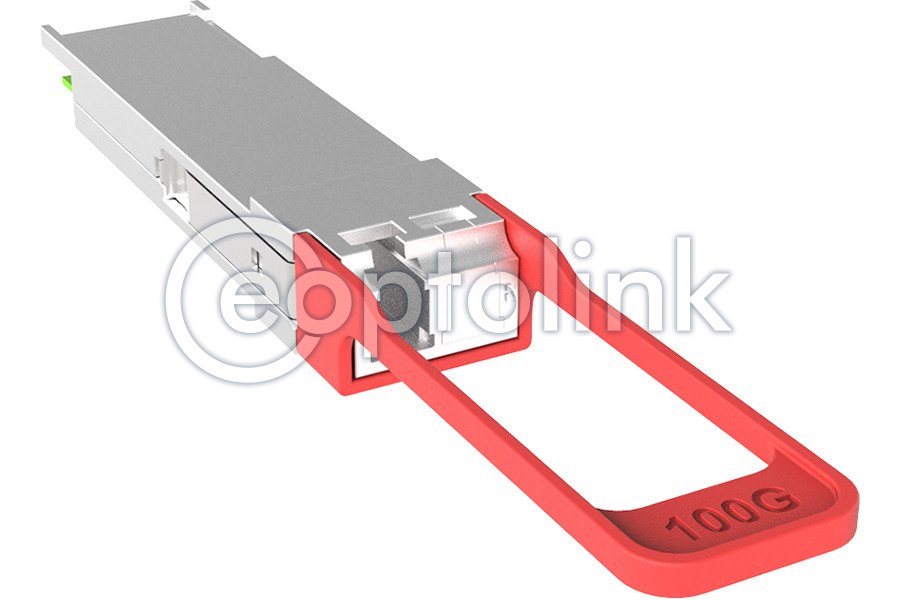

100G BIDI QSFP28 LR
1 / 4
100G BIDI QSFP28 LR
2 / 4

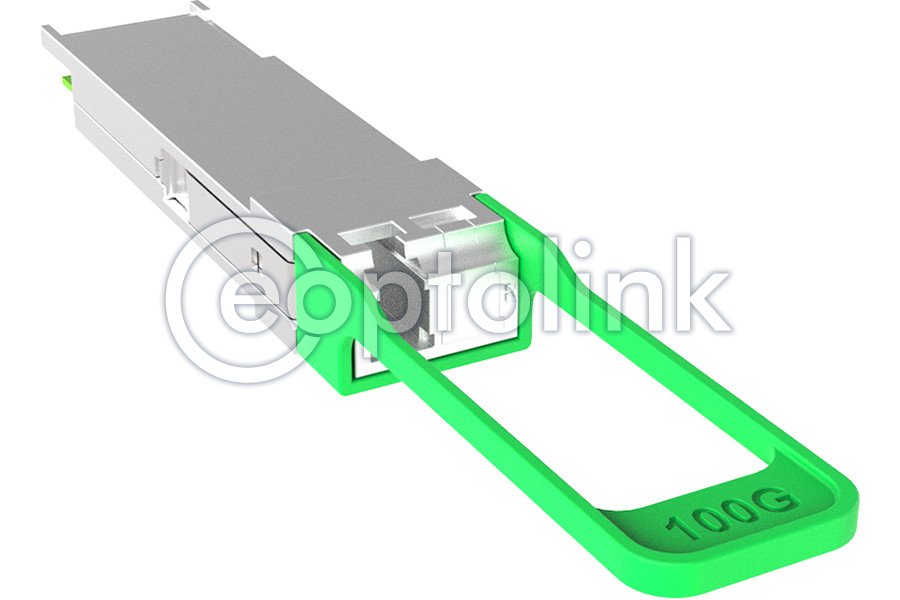

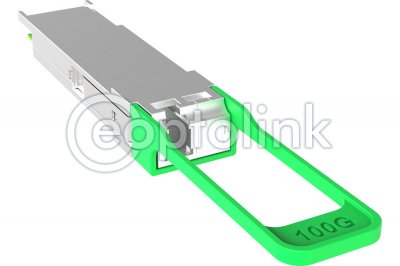

100G BIDI QSFP28 ER
3 / 4
100G BIDI QSFP28 ER
4 / 4

100G BIDI QSFP28 Single Lambda

Eoptolink's BIDI QSFP28 transceiver module is used for 100G Ethernet application in Data Centers, High-speed interconnects within and between switches, routers and transport equipment, Server-Server Clusters, Super-computing interconnections, only one fiber is used in a link.

BIDI QSFP28 LR 100G PN:EOLQ-BI161HG-10-AD/DA6

Eoptolink’s EOLQ-BI161HG-10-AD/DA6 BID QSFP28 LR 100G single fiber optical transceiver module are designed for use in 100 Gigabit Ethernet links over 10km single mode fiber. The module incorporate one channel optical signal and operates on 1271nm and 1331nm wavelength. Compliant with the QSFP28 MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.

BIDI QSFP28 eLR 100G PN:EOLQ-BI161HG-20-BC/CB6

Eoptolink’s EOLQ-BI161HG-10-BC/CB6 BIDI QSFP28 eLR 100G single fiber optical transceiver module are designed for use in 100 Gigabit Ethernet links over 20km single mode fiber. The module incorporate one channel optical signal and operates on 1291nm and 1311nm wavelength. Compliant with the QSFP28 MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.

BIDI QSFP28 ER 100G PN:EOLQ-BI161HG-40-YZ/ZY6

Eoptolink’s EOLQ-BI161HG-40-YZ/ZY6 BIDI QSFP28 ER 100G single fiber optical transceiver module are designed for use in 100 Gigabit Ethernet links over 40km single mode fiber. The module incorporate one channel optical signal and operate on 1304nm and 1309nm wavelength. Compliant with the QSFP28 MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.

    • Supports 103 / 112Gbps aggregate bit rates
    • Single 3.3V Power Supply and Industry Lowest Power dissipation
    • Hot-Pluggable QSFP Footprint
    • Class 1 FDA and IEC60825-1 Laser Safety Compliant
    • RoHS Compliant
    • Operating Case Temperature Standard: 0°C~+70°C
    • 100G Single Lambda MSA QSFP28 100G-LR/ER Specification Compliant
    • I2C interface with integrated Digital Diagnostic Monitoring
    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLQ-BI161HG-10-AD6 BIDI QSFP28 100G LR 1x100Gbps 1271nm/1331nm 10km LC С
    EOLQ-BI161HG-10-DA6 BIDI QSFP28 100G LR 1x100Gbps 1331nm/1271nm 10km LC С
    EOLQ-BI161HG-20-BC6 BIDI QSFP28 100G eLR 1x100Gbps 1291nm/1311nm 20km LC C
    EOLQ-BI161HG-20-CB6 BIDI QSFP28 100G eLR 1x100Gbps 1311nm/1291nm 20km LC C
    EOLQ-BI161HG-40-YZ6 BIDI QSFP28 100G ER 1x100Gbps 1304.58nm/1309.14nm 40km LC С
    EOLQ-BI161HG-40-ZY6 BIDI QSFP28 100G ER 1x100Gbps 1309.14nm/1304.58nm 40km LC С

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
