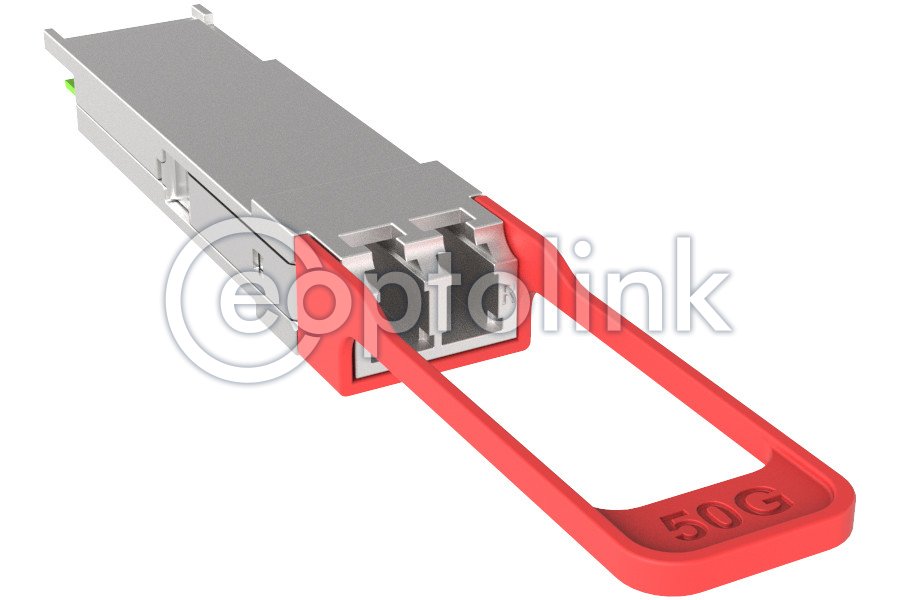

QSFP28 50G ER
QSFP28 50G ER
1 / 2

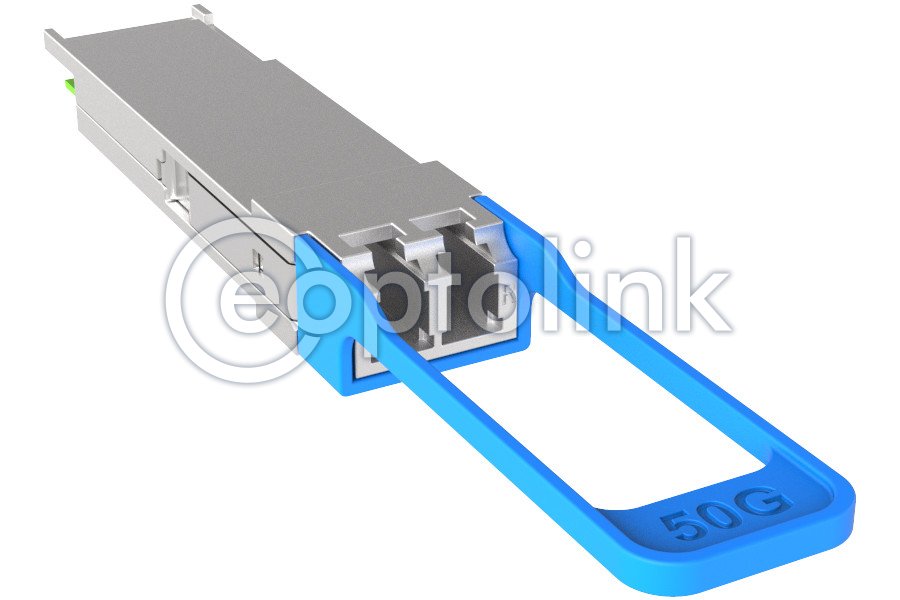

QSFP28 50G LR
2 / 2

50G QSFP28

Eoptolink’s 50G PAM4 QSFP28 transceiver module is designed for 50 Gigabit Ethernet links over 10~40km single mode fiber. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA.

    • Supports 53.125Gbps optical interface
    • Supports 2x26.5625Gbps electrical interface
    • Up to 10km/40km over SMF
    • RoHS Compliant
    • Duplex LC receptacles
    • I2C interface with integrated Digital Diagnostic Monitoring
    • Single 3.3V Power Supply and Power dissipation< 4.5W
    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLQ-1650G-O-10 QSFP28 PAM4 LR 53.125Gbps 1310nm 10km LC C
    EOLQ-1650G-O-40 QSFP28 PAM4 ER 53.125Gbps 1310nm 40km LC C

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
