DWDM SFP 16G
1 / 1

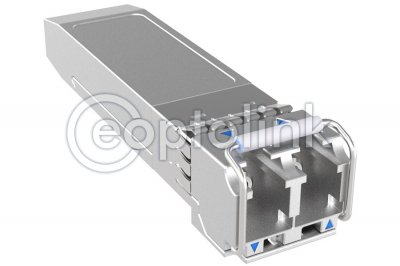

16G DWDM SFP+

Eoptolink DWDM 16G SFP+ series is for duplex optical data communications support 16Gb/s. This module is designed for single mode fiber and operates at a nominal DWDM wavelength from 1528nm to 1566nm as specified by ITU-T.

    • Operating data rate up to 14.025Gbps
    • Available in all C-Band Wavelengths on the 50GHz
    • DWDM ITU Grid Distance up 40km
    • Single 3.3V Power supply and TTL Logic Interface
    • Duplex LC Connector Interface
    • Hot Pluggable
    • Power Dissipation < 2.0W
    • Compliant with SFF-8431 MSA
    • Compliant with SFF-8432 MSA
    • Compliant with 8G and 4G Fibre Channel
    • Operating Case Temperature Standard: 0°C~+70°C
    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLP-1614G-14XXXRN DWDM SFP+ 16G 14.025Gbps C band DWDM 40km LC C

    X refers to DWDM Wavelength

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
