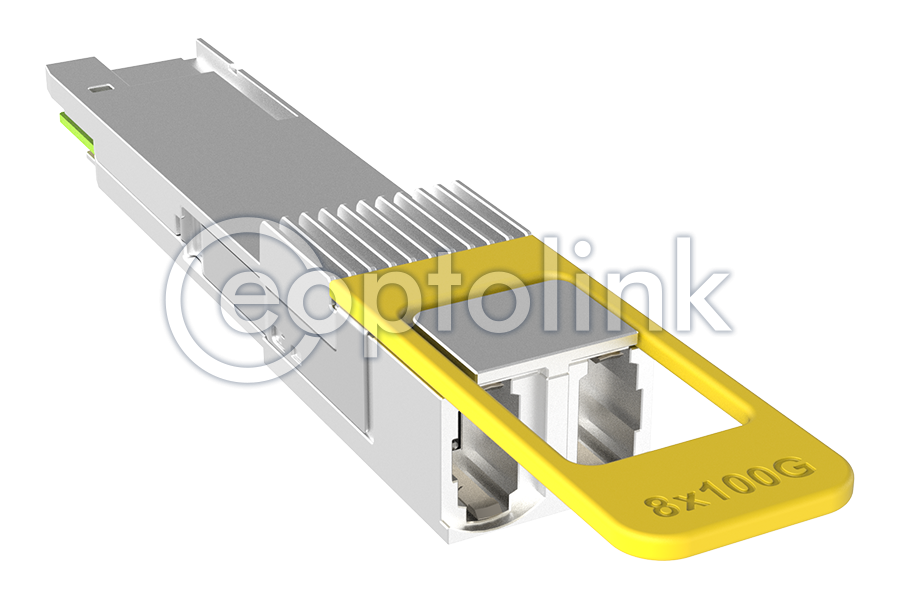

LPO QSFP-DD 800G VR8
LPO QSFP-DD 800G VR8
1 / 3

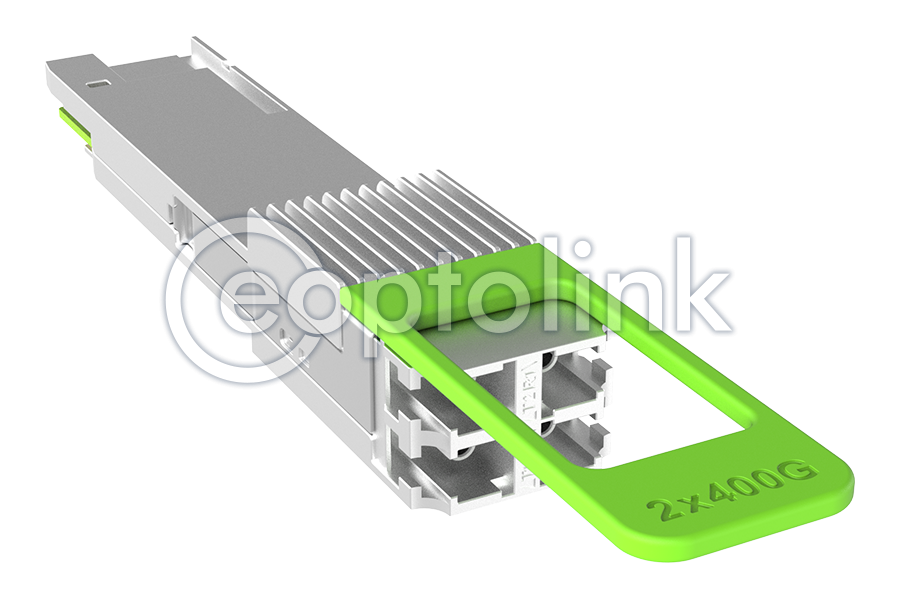

LPO QSFP-DD 2x400G DR4
2 / 3

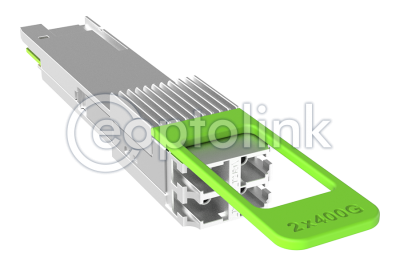

LPO QSFP-DD 2x400G FR4
3 / 3

800G LPO QSFP-DD800

Eoptolink QSFP-DD 800G LPO transceivers are compliant to the latest releases of the QSFP-DD800 MSA. The firmware supports CMIS 5.0 and newer release. We offer transceivers for VR8, 2xDR4, 2xVR4, 2xFR4 interfaces. Our vertical integration for optical engines enables leading performance and per consumption.

    • Supports 850Gb/s
    • Single 3.3V Power Supply
    • QSFP-DD MSA Compliant
    • 106.25Gbps (PAM4)
    • 53.125Gbps (PAM4)
    • 25.78125Gbps (NRZ)
    • Commercial case temperature range of 0°C to 70°C
    • CMIS 5.0 or later version
    Part No. Description Data Rate Wavelength Distance Connector T.range
    EOLD-138HG-5H-xDxLx QSFP-DD 2x400G DR4 8x100G 800GbE 1310nm 500m 2xMPO-12 C
    EOLD-858HG-01-MxLx QSFP-DD 800G VR8 8x100G 800GbE 850nm 50m MPO-16 C
    EOLD-858HG-01-DxLx QSFP-DD 2x400G VR4 8x100G 800GbE 850nm 50m 2xMPO-12 C
    EOLD-168HG-02-SLx QSFP-DD 2x400G FR4 8x100G 800GbE CWDM 2km 2×LC C

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
