100G CWDM SFP56-DD Single Lambda
1 / 1

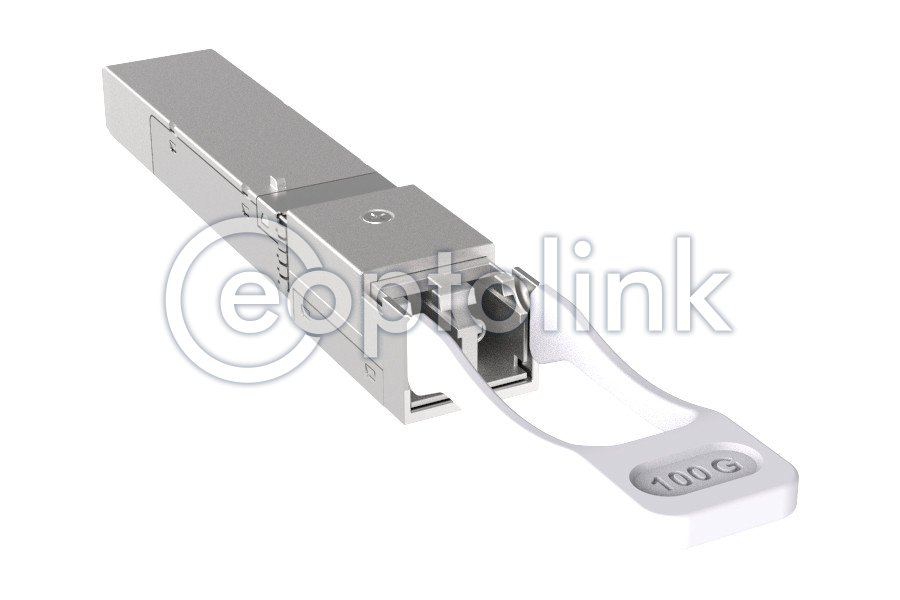

100G CWDM SFP56-DD Single Lambda

Eoptolink’s CWDM Single Lambda SFP DD transceiver module is designed for use in 100 Gigabit Ethernet links over 10km single mode fiber. The module incorporates one channel optical signal on 1271, 1291, 1311 or 1331nm center wavelength, operating at 50Gbaud data rate. The electrical interface of the module is compliant with the 100GAUI-2 and compliant with SFP-DD MSA.

    • Single 3.3V Power Supply
    • 100G Lambda MSA 100G-LR Specification Compliant
    • SFP-DD MSA Compliant
    • 2x53.125Gbps(PAM4) electrical interface
    • Power dissipation < 3.5W
    • 100G Ethernet
    • Data Center
    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLSD-161HG-O-10-X6 100G CWDM SFP56-DD 106.25G 1271/1291/1311/1331 10km LC C

    X - A, B, C, D defines wavelenght 1271/1291/1311/1331

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
