QSFP28 100G Loopback
1 / 1

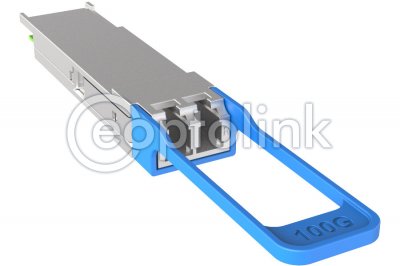

100G QSFP28 Loopback

The Electrical Loopbacks from EOPTOLINK intend to support Datacom, Infiniband, Fiber Channel applications, which provide a method for port operations testing in board and system. They are hot swappable, constructed of metal cast for excellent EMI performance.

EOPTOLINK's QSFP28 Electrical Loopbacks are compliant with the QSFP+ Multi-Source Agreement (MSA) Specification SFF8436 and SFF8661. They comply with parallel applications for 4 x (100M~27.95G) Specification. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the QSFP+ MSA.

    • Supports 4 x 27.95Gb/s rates
    • Compliant with QSFP+ MSA SFF8436, SFF8661
    • Dual LED indicator to display module status
    • Built-in digital diagnostic functions
    • Operation case temperature range -40C to +85C
    • 1.5W~5W & customized power consumption
    • Automatically shut down & self-protection
    • Board and system level testing
    • Test and measurement
    • Switch and Router chamber testing
    Part No. Description Power Consumption Latch/Pull tab Temp.
    EOLQ-1HG-XLB-C1P QSFP28 100G loopback 1.5~2W Pull tab C
    EOLQ-1HG-XLB-C2P QSFP28 100G loopback 2~2.5W Pull tab C
    EOLQ-1HG-XLB-C3P QSFP28 100G loopback 2.5~3W Pull tab C
    EOLQ-1HG-XLB-C4P QSFP28 100G loopback 3~3.5W Pull tab C
    EOLQ-1HG-XLB-C5P QSFP28 100G loopback 3.5~4W Pull tab C
    EOLQ-1HG-XLB-C6P QSFP28 100G loopback 4~4.5W Pull tab C
    EOLQ-1HG-XLB-C7P QSFP28 100G loopback 4.5~5W Pull tab C
