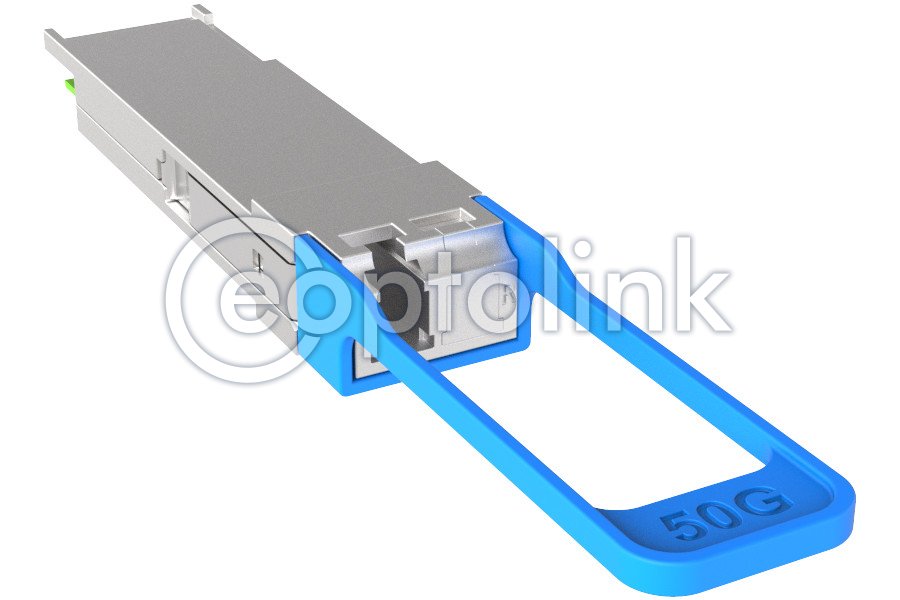

BIDI QSFP28 50G ER
BIDI QSFP28 50G ER
1 / 2

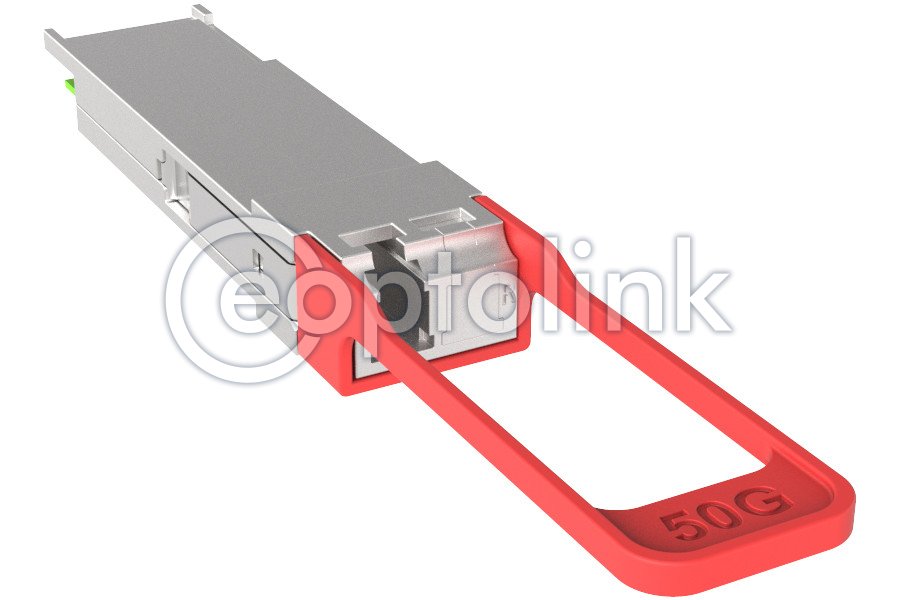

BIDI QSFP28 50G LR
2 / 2

50G BIDI QSFP28

Eoptolink’s EOLQ-BI1650G-O-10-XXL 50G PAM4 QSFP28 transceiver module is designed for 50 Gigabit Ethernet links up to 40Km single mode fiber. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA.

    • Supports 53.125Gbps
    • Single 3.3V Power Supply and Power dissipation < 4.5W
    • Up to 40km over SMF
    • Commercial case temperature range of 0°C to 70°C
    • Support both 2x25.78Gbps(enable KP4 FEC in module) and 2x26.5625Gbps electrical interfaces
    • BIDI LC receptacles
    • I2C interface with integrated Digital Diagnostic Monitoring
    • Safety Certification: TUV/UL/FDA
    • RoHS Compliant
    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLQ-BI1650G-10-ADL QSFP28 PAM4 BIDI LR 53.125Gbps 1270nm/1330nm 10km LC C
    EOLQ-BI1650G-10-DAL QSFP28 PAM4 BIDI LR 53.125Gbps 1330nm/1270nm 10km LC C
    EOLQ-BI1650G-40-ADL QSFP28 PAM4 BIDI ER 53.125Gbps 1295nm/1309nm 40km LC C
    EOLQ-BI1650G-40-DAL QSFP28 PAM4 BIDI ER 53.125Gbps 1309nm/1295nm 40km LC C

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
