Lower than 10G

  1. You are here:
  2. Home
  3. Product solutions
  4. Lower than 10G
  5. 1G SFP

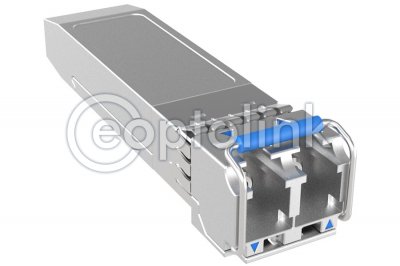

SFP GE LX
SFP GE LX
1 / 2

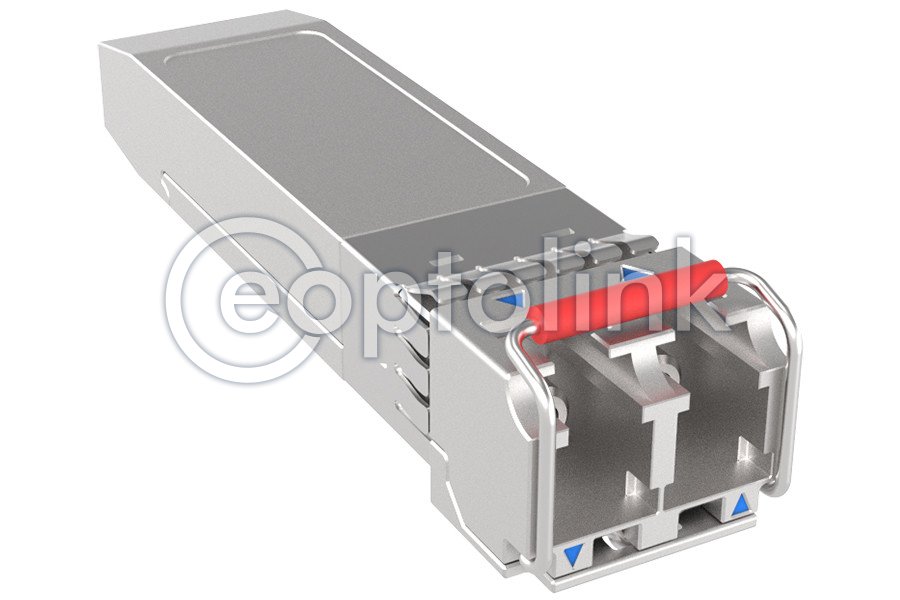

SFP GE ZX
2 / 2

1G SFP

The IEEE 802.3z standard includes 1000BASE-SX for transmission over multi-mode fiber, 1000BASE-LX for transmission over single-mode fiber, 100BASE-FX is a version of Fast Ethernet over optical fiber. It uses a 1300 nm near-infrared (NIR) light wavelength transmitted via two strands of optical fiber, one for receive(RX) and the other for transmit(TX), 100BASE-SX is a version of Fast Ethernet over optical fiber. It uses two strands of multi-mode optical fiber for receive and transmit. Eoptolink is produce complete range for FE and GE optical fiber transceivers.

    • Operating Data Rate up to 1.25Gbps
    • Up to 160km
    • Single 3.3V Power Supply and LVTTL Logic Interface
    • Hot-Pluggable SFP Footprint Duplex LC Connector
    • Interface Class 1 FDA and IEC60825-1 Laser Safety Compliant
    • Operating Case Temperature Standard: 0C~+70C and Industrial: -40C~+85C
    • Compliant with SFP MSA Specification
    • Compliant with SFF-8472
    • Gigabit Ethernet Switches and Routers
    • Fiber Channel Switch Infrastructure
    • Other Optical Links
    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLS-8503-02-D SFP FE ≤ 155Mbps 850nm 2km LC C/I
    EOLS-1303-2M-D SFP FE ≤ 155Mbps 1310nm 2km LC C/I
    EOLS-1303-2-D SFP FE ≤ 155Mbps 1310nm 2km LC C/I
    EOLS-1303-15-D SFP FE ≤ 155Mbps 1310nm 15km LC C/I
    EOLS-1303-40-D SFP FE ≤ 155Mbps 1310nm 40km LC C/I
    EOLS-1303-80-D SFP FE ≤ 155Mbps 1310nm 80km LC C/I
    EOLS-1503-15-D SFP FE ≤ 155Mbps 1550nm 15km LC C/I
    EOLS-1503-80-D SFP FE ≤ 155Mbps 1550nm 80km LC C/I
    EOLS-1503-A-D SFP FE ≤ 155Mbps 1550nm 100km LC C/I
    EOLS-1503-B-D SFP FE ≤ 155Mbps 1550nm 120km LC C/I
    EOLS-1503-C-D SFP FE ≤ 155Mbps 1550nm 160km LC C/I
    EOLS-1503-D-D SFP FE ≤ 155Mbps 1550nm 200km LC C/I
    EOLS-8512-02-D SFP GE ≤ 1.0625Gbps 850nm 0.550km LC C/I
    EOLS-1312-M-D SFP GE ≤ 1.25Gbps 1310nm 1km LC C/I
    EOLS-1312-10-D SFP GE ≤ 1.25Gbps 1310nm 10km LC C/I
    EOLS-1312-15-D SFP GE ≤ 1.25Gbps 1310nm 15km LC C/I
    EOLS-1312-20-D SFP GE ≤ 1.25Gbps 1310nm 20km LC C/I
    EOLS-1312-40-D SFP GE ≤ 1.25Gbps 1310nm 40km LC C/I
    EOLS-1512-40-D SFP GE ≤ 1.25Gbps 1550nm 40km LC C/I
    EOLS-1512-80-D SFP GE ≤ 1.25Gbps 1550nm 80km LC C/I
    EOLS-1512-A-D SFP GE ≤ 1.25Gbps 1550nm 100km LC C/I
    EOLS-1512-B-D SFP GE ≤ 1.25Gbps 1550nm 120km LC C/I
    EOLS-1512-C-D SFP GE ≤ 1.25Gbps 1550nm 160km LC C/I
    EOLS-8524-02 SFP GE ≤ 2.125Gbps 850nm 400m LC C/I

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
