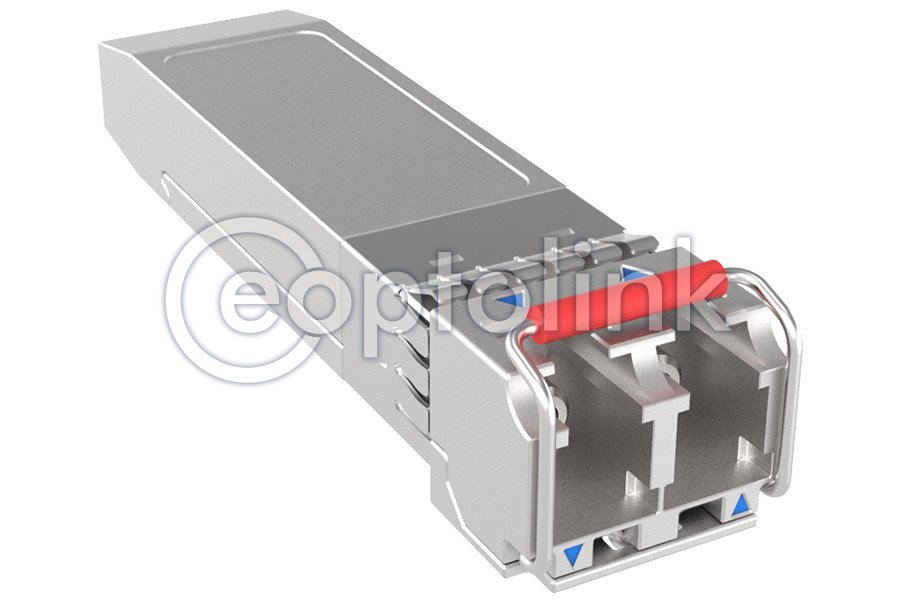

SFP SDH

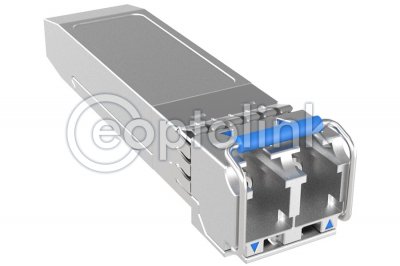

SFP SDH
1 / 2
SFP SONET
2 / 2

SDH/SONET SFP

The Eoptolink's Multi-rate Series 2.67Gb/s transceiver module integrates optics and electronics in a Small Form Factor Pluggable (SFP) package. It is Multisource Agreement (MSA) compatible and designed for operation at 1310 nm and 1550 nm. Although optimized for OC-48/STM-16, it provides multi-rate capabilities and can be used from OC-3/STM-1(155 Mb/s) up to 2.7 Gb/s. MultiRate SFP transceiver provides a fully OC-48 SONET compliant interface between the SONET/SDH photonic layer and the electrical layer. Its microprocessor - based modular design implements all features specified in the SFP MSA compatible 2-wire Serial Digital Diagnostic Monitoring Interface for Optical Transceivers. OC-48 / STM-16 is a network line with transmission speeds of up to 2488.32 Mbit/s (payload: 2405.376 Mbit/s; overhead: 82.944 Mbit/s).

OC-3/STM-1 is a network line with transmission speeds of up to 155.52 Mbit/s (payload: 148.608 Mbit/s; overhead: 6.912 Mbit/s, including path overhead) using fiber optics. Depending on the system OC-3 is also known as STS-3 (electrical level) and STM-1 (SDH). These modules are also used for Fast Ethernet application.

OC-12 or STM-4 is a network line with transmission speeds of up to 622.08 Mbit/s (payload: 601.344 Mbit/s; overhead: 20.736 Mbit/s).

    • Operating Data Rate up to 2.67Gbps
    • Up to 120km with 9/125 µm SMF
    • Single 3.3V Power Supply and TTL Logic Interface
    • Hot-Pluggable SFP Footprint Duplex LC Connector Interface
    • Class 1 FDA and IEC60825-1 Laser Safety
    • Compliant Operating Case Temperature Standard: 0°C~70°C and Industrial:-40°C~+85°C
    • Compliant with SFP MSA Specification
    • Compliant with SFF-8472
    • STM1/4/16 Optical Interface
    • OUT-1 Optical Interface
    • ATM Switches and Routers
    • Fiber Channel / 2×Fiber Channel
    • Other Optical Links
    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLS-8503-02-D   ≤ 155Mbps 850nm 2km LC C/I
    EOLS-1303-2M-D SFP STM1/OC3 ≤ 155Mbps 1310nm 2km LC C/I
    EOLS-1303-2-D SFP STM1/OC3 < 155Mbps 1310nm 2km LC C/I
    EOLS-1503-15-D SFP STM1/OC3 ≤ 155Mbps 1550nm 15km LC C/I
    EOLS-1303-40-D SFP STM1/OC3 ≤ 155Mbps 1310nm 40km LC C/I
    EOLS-1303-80-D SFP STM1/OC3 ≤ 155Mbps 1310nm 80km LC C/I
    EOLS-1503-15-D SFP STM1/OC3 ≤ 155Mbps 1550nm 15km LC C/I
    EOLS-1503-80-D SFP STM1/OC3 ≤ 155Mbps 1550nm 80km LC C/I
    EOLS-1503-A-D SFP STM1/OC3 ≤ 155Mbps 1550nm 100km LC C/I
    EOLS-1503-B-D SFP STM1/OC3 ≤ 155Mbps 1550nm 120km LC C/I
    EOLS-1503-C-D SFP STM1/OC3 ≤ 155Mbps 1550nm 160km LC C/I
    EOLS-1503-D-D SFP STM1/OC3 ≤ 155Mbps 1550nm 200km LC C/I
    EOLS-8506-02-D SFP STM4/OC12 ≤ 622Mbps 850nm 1km LC C/I
    EOLS-1306-2M-D SFP STM4/OC12 ≤ 622Mbps 1310nm 2km LC C/I
    EOLS-1306-15-D SFP STM4/OC12 ≤ 622Mbps 1310nm 15km LC C/I
    EOLS-1306-40-D SFP STM4/OC12 ≤ 622Mbps 1310nm 40km LC C/I
    EOLS-1506-80-D SFP STM4/OC12 ≤ 622Mbps 1550nm 80km LC C/I
    EOLS-1506-B-D SFP STM4/OC12 ≤ 622Mbps 1550nm 120km LC C/I
    EOLS-1506-C-D SFP STM4/OC12 ≤ 622Mbps 1550nm 160km LC C/I
    EOLS-8524-02-D   ≤ 2.125Gbps 850nm 400m LC C/I
    EOLS-1324-02-D SFP STM16/OC48 ≤ 2.5Gbps 1310nm 2km LC C/I
    EOLS-1324-10-D SFP STM16/OC48 ≤ 2.5Gbps 1310nm 10km LC C/I
    EOLS-1324-15-D SFP STM16/OC48 ≤ 2.5Gbps 1310nm 15km LC C/I
    EOLS-1324-40-D SFP STM16/OC48 ≤ 2.5Gbps 1310nm 40km LC C/I
    EOLS-1524-40-D SFP STM16/OC48 ≤ 2.5Gbps 1550nm 40km LC C/I
    EOLS-1524-80-D SFP STM16/OC48 ≤ 2.5Gbps 1550nm 80km LC C/I
    EOLS-1524-A-D SFP STM16/OC48 ≤ 2.5Gbps 1550nm 100km LC C/I
    EOLS-1524-B-D SFP STM16/OC48 ≤ 2.5Gbps 1550nm 120km LC C/I
    EOLS-8526-02-D   ≤ 2.67Gbps 850nm 550m LC C/I
    EOLS-1326-02-D SFP STM16/OC48 ≤ 2.67Gbps 1310nm 2km LC C/I
    EOLS-1326-10-D SFP STM16/OC48 ≤ 2.67Gbps 1310nm 10km LC C/I
    EOLS-1326-15-D SFP STM16/OC48 ≤ 2.67Gbps 1310nm 15km LC C/I
    EOLS-1326-40-D SFP STM16/OC48 ≤ 2.67Gbps 1310nm 40km LC C/I
    EOLS-1526-15-D SFP STM16/OC48 ≤ 2.67Gbps 1550nm 15km LC C/I
    EOLS-1526-40-D SFP STM16/OC48 ≤ 2.67Gbps 1550nm 40km LC C/I
    EOLS-1526-80-D SFP STM16/OC48 ≤ 2.67Gbps 1550nm 80km LC C/I
    EOLS-1526-A-D SFP STM16/OC48 ≤ 2.67Gbps 1550nm 100km LC C/I
    EOLS-1526-B-D SFP STM16/OC48 ≤ 2.67Gbps 1550nm 120km LC C/I

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
