Compact small form-factor pluggable CSFP+ transceiver and a compact small form-factor CSFP+ transceiver supports network systems, especially those deploying single-fiber bidirectional transceivers in high density 4G/6G/8G/10G applications. The CSFP+ design is modular to enable configurations of integrated 2ch modules in one SFP+ cage.
1 / 1

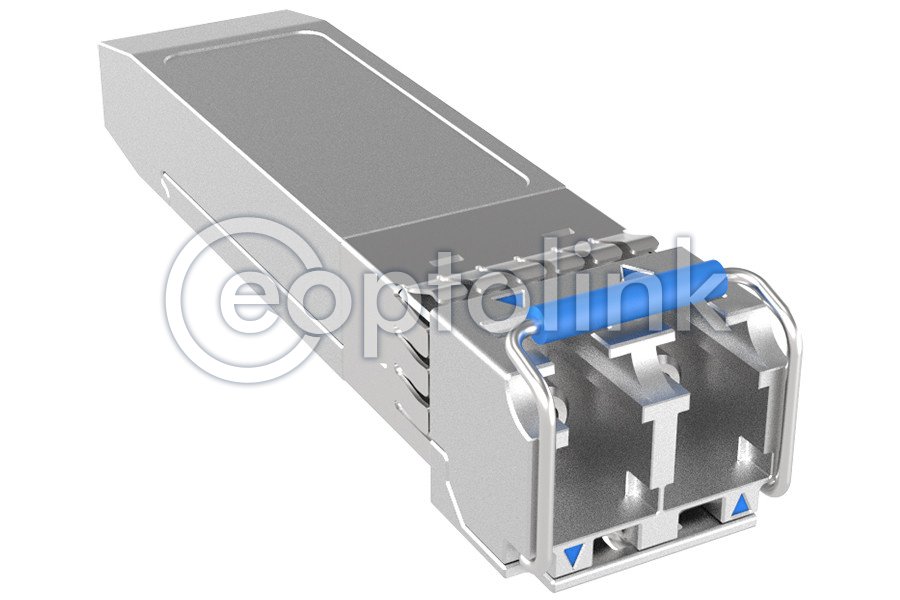

10G Compact CSFP+
- Operation Data Rate Up To 10.3125Gbps
- 1270nm DFB TX/1330nm RX with CH1
- 1330nm DFB TX/1270nm RX with CH2
- 15km with 9/125 μm SMF
- Single 3.3V Power supply and TTL Logic Interface
- 2XBi-directional transceivers in 1 SFP+ transceiver package
- Class 1 FDA and IEC60825-1 Laser Safety Compliant
- Operating Case Temperature
- Standard: 0C~+70C
- Industrial: -40C~+85C
- Compliant with CSFP MSA Option 2
- The Mechanical Dimensions Compliant With SFP MSA
- Compliant with Digital Diagnostic Monitor Interface SFF-8472
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLCS-BI1696-15-AD | BIDI CSFP+ LR | 1.25G to 10.3Gbps | CH1 T27/R33 CH2 T33/R27 |
15km | LC | C |
| EOLCS-BI1696-15-ADI | BIDI CSFP+ LR | 1.25G to 10.3Gbps | CH1 T27/R33 CH2 T33/R27 |
15km | LC | I |
For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
