Coherent QSFP56-DD 400G

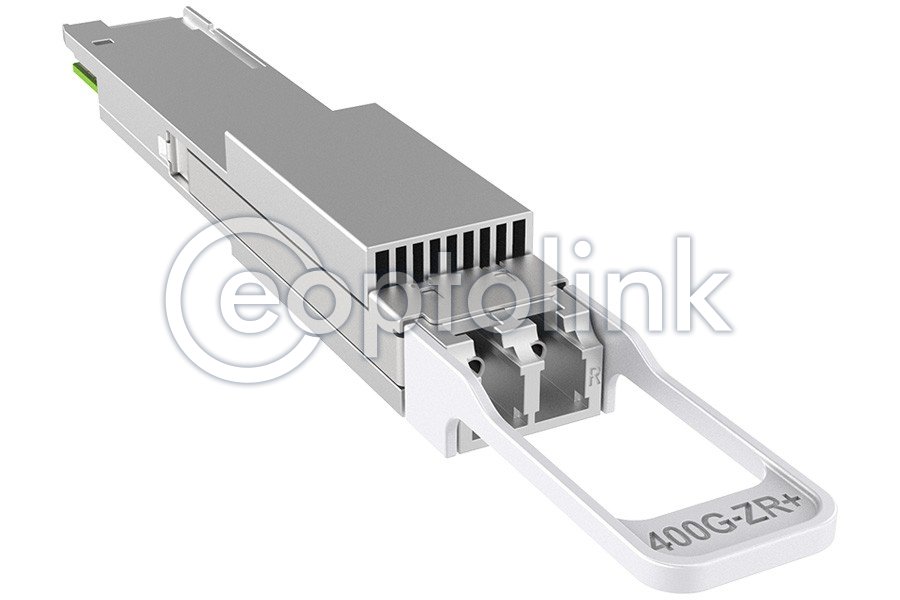

The EOLD-164HG-B-XXXXX QSFP-DD 400G ZR transceivers are compliant with the OIF 400G ZR standard and the EOLD-164HG-E-XXXXX QSFP-DD 400G ZR+ transceiver is complaint to the OpenZR+ standard. The modules use a SiPho based optical engine and the latest generation for DSP for 400G coherent transmission. The QSFP-DD form-factor and CMIS5.1 support makes them suitable for use in transmission and Ethernet switching equipment.

    • Supports 425Gbps
    • Single 3.3V Power Supply
    • Power dissipation <21W (ZR+)
    • QSFP-DD MSA compliant
    • RoHS compliant
    • 8x53.125Gbps (PAM4) electrical interface
    • Duplex LC connector
    • Commercial case temperature range of 0°C to 70°C
    • I2C interface with integrated Digital Diagnostic Monitoring
    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLD-164HG-B-XXXXX Coherent QSFP56-DD ZR 425Gbps DWDM 120km LC C
    EOLD-164HG-E-XXXXX Coherent QSFP56-DD ZR+ 425Gbps DWDM 480km LC C

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
