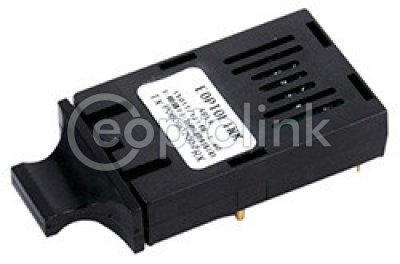

1x9
1x9
1 / 2
BIDI 1x9
2 / 2

1x9

Eoptolink 1x9 optical transceiver is designed for use in 0~2.67Gbps data links. It provide the SC/FC/ST optical port that is compatible with the industry standard connector. Both the transmitter and the receiver are packaged together with a top plastic cover and bottom shield. Customized series includes  CWDM, single receivers or transmitter, dual transmitter. The transceiver operates with 3.3V/5V Volt DC power supply.

    • Single mode fiber optical transceivers features 1X9 Pin Package
    • Special customized speed rates, 155Mb, 1.25Gb, 2.5Gb, CWDM 1x9
    • Single +3.3V or +5V Power Supply, dual PS
    • LVPECL / PECL / TTL Data Interface, DC Coupling,
    • Fully Compliant with ITU-T G 957, G958 Specifications,
    • Eye Safety, Meet Laser Class 1, Compliant with IEC 60825-1,Compliant with Telcordia (Bellcore) GR-468-CORE
    • Working distance from 0.1km to 120km max
    • With SC, FC, ST fiber connection interface;
    • Ethernet
    • Video
    • Special applications

    1x9

    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOL9-1300-20 1x9 0-1M 1310nm 20km SC C
    EOL9-1500-20 1x9 0-1M 1550nm 20km SC C
    EOL9-1300-20-I 1x9 0-1M 1310nm 20km SC I
    EOL9-1500-20-I 1x9 0-1M 1550nm 20km SC I
    EOL9-1300-2M 1x9 0-1M 1310nm 2km SC C
    EOL9-1500-2M 1x9 0-1M 1550nm 2km SC C
    EOL9-1300-2M-I 1x9 0-1M 1310nm 2km SC I
    EOL9-1500-2M-I 1x9 0-1M 1550nm 2km SC I
    EOL9-1301-20-RH 1x9 1-100M 1310nm 20km SC C
    EOL9-1501-20-RH 1x9 1-100M 1550nm 20km SC C
    EOL9-1501-20-IRH 1x9 1-100M 1550nm 20km SC I
    EOL9-1301-40-PFRH 1x9 1-100M 1310nm 40km Pigtail/FC/PC C
    EOL9-1501-40-PFRH 1x9 1-100M 1550nm 40km Pigtail/FC/PC C
    EOL9-1301-40-IPFRH 1x9 1-100M 1310nm 40km Pigtail/FC/PC I
    EOL9-1501-40-IPFRH 1x9 1-100M 1550nm 40km Pigtail/FC/PC I
    EOL9-1303-15-IUV 1x9 155M 1310nm 20km SC I
    EOL9-1303-15-UV 1x9 155M 1310nm 20km SC C
    EOL9-1503-15-UV 1x9 155M 1550nm 20km SC C
    EOL9-1303-20-UV 1x9 155M 1310nm 20km SC C
    EOL9-1503-20-UV 1x9 155M 1550nm 20km SC C
    EOL9-1303-20-IUV 1x9 155M 1310nm 20km SC I
    EOL9-1303-2M-IMUV 1x9 155M 1310nm 2km ST Metal I
    EOL9-1503-2M-IMUV 1x9 155M 1550nm 2km ST Metal I
    EOL9-1503-2M-MUV 1x9 155M 1550nm 2km ST Metal C
    EOL9-1503-2M-ITXV 1x9 155M 1550nm 2km ST Plastic I
    EOL9-1503-2M-TXV 1x9 155M 1550nm 2km ST Plastic C
    EOL9-1303-40-XH 1x9 155M 1310nm 40km SC C
    EOL9-1503-40-XH 1x9 155M 1550nm 40km SC C
    EOL9-1303-40-IXH 1x9 155M 1310nm 40km SC I
    EOL9-1503-40-IXH 1x9 155M 1550nm 40km SC I
    EOL9-1504-40-RH 1x9 300M 1550nm 40km SC C
    EOL9-1504-40-IRH 1x9 300M 1550nm 40km SC I
    EOL9-1312-20-X 1x9 1.25G 1310nm 20km SC C
    EOL9-1512-20-X 1x9 1.25G 1550nm 20km SC C
    EOL9-1312-20-IX 1x9 1.25G 1310nm 20km SC I
    EOL9-1512-20-IX 1x9 1.25G 1550nm 20km SC I
    EOL9-1312-40-X 1x9 1.25G 1310nm 40km SC C
    EOL9-1512-40-X 1x9 1.25G 1550nm 40km SC C
    EOL9-1312-40-IX 1x9 1.25G 1310nm 40km SC I
    EOL9-1512-40-IX 1x9 1.25G 1550nm 40km SC I
    EOL9-1512-80-X 1x9 1.25G 1550nm 80km SC C
    EOL9-1303-40-IX 1x9 155M 1310nm 40km SC I
    EOL9-1503-40-IX 1x9 155M 1550nm 40km SC I
    EOL9-1303-40-X 1x9 155M 1310nm 40km SC C
    EOL9-1503-40-X 1x9 155M 1550nm 40km SC C
    EOL9-1303-60-XH 1x9 155M 1310nm 60km SC C
    EOL9-1503-80-XH 1x9 155M 1550nm 60km SC C
    EOL9-1303-A-IFXH 1x9 155M 1310nm 100km FC I
    EOL9-1303-A-FXH 1x9 155M 1310nm 100km FC C
    EOL9-1503-A-FXH 1x9 155M 1550nm 100km FC C
    EOL9-1303-B-FXV 1x9 155M 1310nm 120km FC C
    EOL9-1503-B-FXV 1x9 155M 1550nm 120km FC C
    EOL9-1303-B-IFXV 1x9 155M 1310nm 120km FC I
    EOL9-1503-B-IFXV 1x9 155M 1550nm 120km FC I
    EOL9-1306-60-XH 1x9 622M 1310nm 60km SC C
    EOL9-1506-60-XH 1x9 622M 1550nm 60km SC C
    EOL9-1306-60-IXH 1x9 622M 1310nm 60km SC I
    EOL9-1506-60-IXH 1x9 622M 1550nm 60km SC I
    EOL9-1603-29X 1x9 155M CWDM 29dB SC C
    EOL9-1603-29IX 1x9 155M CWDM 29dB SC I
    EOL9-1606-23X 1x9 622M CWDM 23dB SC C
    EOL9-1606-23IX 1x9 622M CWDM 23dB SC I
    EOL9-1612-19X 1x9 1.25G CWDM 19dB SC C
    EOL9-1612-19IX 1x9 1.25G CWDM 19dB SC I
    EOL9-1612-28X 1x9 1.25G CWDM 28dB SC C
    EOL9-1612-28IX 1x9 1.25G CWDM 28dB SC I
    EOL9-1623-A-24PX 1x9 1.25G/155M 1570 24dB SC C
    EOL9-1623-A-24PIX 1x9 1.25G/155M 1570 24dB SC I
    EOL9-1632-A-24QX 1x9 155M/1.25G 1590 24dB SC C
    EOL9-1632-A-24QIX 1x9 155M/1.25G 1590 24dB SC I
    EOL9-1332-A-60-X 1x9 155M/1.25G 1310nm 60km SC C
    EOL9-1523-A-60-X 1x9 1.25G/155M 1550nm 60km SC C
    EOL9-1332-A-60-IX 1x9 155M/1.25G 1310nm 60km SC I
    EOL9-1523-A-60-IX 1x9 1.25G/155M 1550nm 60km SC I
    EOL9-8512-02-H 1x9 1.25G 850nm 550m SC C
    EOL9-8512-02-IH 1x9 1.25G 850nm 550m SC I
    EOL9-8512-02-IV 1x9 1.25G 850nm 550m SC I
    EOL9-8512-02-V 1x9 1.25G 850nm 550m SC C
    EOL9-8503-02-X 1x9 155Mb 850nm 2km SC C
    EOL9-8501-02-X 1x9 <=20b 850nm 2km SC C

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.

    BIDI 1x9

    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOL9-BI1303-20-FXS BIDI 1x9 155M 1550nm/1310nm 20km FC C
    EOL9-BI1503-20-FXS BIDI 1x9 155M 1310nm/1550nm 20km FC C
    EOL9-BI1303-20-IFXS BIDI 1x9 155M 1550nm/1310nm 20km FC I
    EOL9-BI1503-20-IFXS BIDI 1x9 155M 1310nm/1550nm 20km FC I
    EOL9-BI1303-20-FXVS BIDI 1x9 155M 1550nm/1310nm 20km FC C
    EOL9-BI1503-20-FXVS BIDI 1x9 155M 1310nm/1550nm 20km FC C
    EOL9-BI1303-20-IFXVS BIDI 1x9 155M 1550nm/1310nm 20km FC I
    EOL9-BI1503-20-IFXVS BIDI 1x9 155M 1310nm/1550nm 20km FC I
    EOL9-BI1303-20-IMXS BIDI 1x9 155M 1550nm/1310nm 20km ST Metal I
    EOL9-BI1503-20-IMXS BIDI 1x9 155M 1310nm/1550nm 20km ST Metal I
    EOL9-BI1303-20-MXS BIDI 1x9 155M 1550nm/1310nm 20km ST Metal C
    EOL9-BI1503-20-MXS BIDI 1x9 155M 1310nm/1550nm 20km ST Metal C
    EOL9-BI1303-20-UM BIDI 1x9 155M 1550nm/1310nm 20km SC C
    EOL9-BI1503-20-UM BIDI 1x9 155M 1310nm/1550nm 20km SC C
    EOL9-BI1303-20-IUM BIDI 1x9 155M 1550nm/1310nm 20km SC I
    EOL9-BI1503-20-IUM BIDI 1x9 155M 1310nm/1550nm 20km SC I
    EOL9-BI1303-20-XHM BIDI 1x9 155M 1550nm/1310nm 20km SC C
    EOL9-BI1303-20-XHM BIDI 1x9 155M 1310nm/1550nm 20km SC C
    EOL9-BI1303-20-IXHM BIDI 1x9 155M 1550nm/1310nm 20km SC I
    EOL9-BI1303-20-IXHM BIDI 1x9 155M 1310nm/1550nm 20km SC I
    EOL9-BI1303-20-XHS BIDI 1x9 155M 1550nm/1310nm 20km SC C
    EOL9-BI1503-20-XHS BIDI 1x9 155M 1310nm/1550nm 20km SC C
    EOL9-BI1303-20-IXHS BIDI 1x9 155M 1550nm/1310nm 20km SC I
    EOL9-BI1503-20-IXHS BIDI 1x9 155M 1310nm/1550nm 20km SC I
    EOL9-BI1303-20-XM BIDI 1x9 155M 1550nm/1310nm 20km SC C
    EOL9-BI1503-20-XM BIDI 1x9 155M 1310nm/1550nm 20km SC C
    EOL9-BI1303-20-IXM BIDI 1x9 155M 1550nm/1310nm 20km SC I
    EOL9-BI1503-20-IXM BIDI 1x9 155M 1310nm/1550nm 20km SC I
    EOL9-BI1303-40-FXVS BIDI 1x9 155M 1550nm/1310nm 40km FC C
    EOL9-BI1503-40-FXVS BIDI 1x9 155M 1310nm/1550nm 40km FC C
    EOL9-BI1303-40-IFXVS BIDI 1x9 155M 1550nm/1310nm 40km FC I
    EOL9-BI1503-40-IFXVS BIDI 1x9 155M 1310nm/1550nm 40km FC I
    EOL9-BI1303-40-IMXS BIDI 1x9 155M 1550nm/1310nm 40km ST Metal I
    EOL9-BI1503-40-IMXS BIDI 1x9 155M 1310nm/1550nm 40km ST Metal I
    EOL9-BI1303-40-MXS BIDI 1x9 155M 1550nm/1310nm 40km ST Metal C
    EOL9-BI1503-40-MXS BIDI 1x9 155M 1310nm/1550nm 40km ST Metal C
    EOL9-BI1303-40-XM BIDI 1x9 155M 1550nm/1310nm 40km SC C
    EOL9-BI1503-40-XM BIDI 1x9 155M 1310nm/1550nm 40km SC C
    EOL9-BI1303-40-IXM BIDI 1x9 155M 1550nm/1310nm 40km SC I
    EOL9-BI1503-40-IXM BIDI 1x9 155M 1310nm/1550nm 40km SC I
    EOL9-BI1303-60-XHS BIDI 1x9 155M 1550nm/1310nm 60km SC C
    EOL9-BI1503-60-XHS BIDI 1x9 155M 1550nm/1310nm 60km SC C

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.

    Special 1x9

    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOL9-04-R-J Single and Dual RX 1x9 300M 1100-1600nm -32dBm SC C
    EOL9-12-DR Single and Dual RX 1x9 1.25G 1100-1600nm -24dBm SC C
    EOL9-03-DR Single and Dual RX 1x9 155M 1100-1600nm -24dBm SC C
    EOL9-24-R-KV Single and Dual RX 1x9 2.5G 1100-1610nm -18dBm SC C
    EOL9-04-R-IJ Single and Dual RX 1x9 300M 1100-1600nm -32dBm SC I
    EOL9-24-R-IKV Single and Dual RX 1x9 2.5G 1100-1610nm -18dBm SC I
    EOL9-1312-T-20-K Single TX 1x9 1.25G 1310nm 20km SC C
    EOL9-1512-T-20-K Single TX 1x9 1.25G 1550nm 20km SC C
    EOL9-1312-T-20-IK Single TX 1x9 1.25G 1310nm 20km SC I
    EOL9-1512-T-20-IK Single TX 1x9 1.25G 1550nm 20km SC I
    EOL9-1312-T-40-K Single TX 1x9 1.25G 1310nm 40km SC C
    EOL9-1512-T-40-K Single TX 1x9 1.25G 1550nm 40km SC C
    EOL9-1312-T-40-IK Single TX 1x9 1.25G 1310nm 40km SC I
    EOL9-1512-T-40-IK Single TX 1x9 1.25G 1550nm 40km SC I
    EOL9-1324-T-02-FJV Single TX 1x9 2.5G 1310nm 2km FC C
    EOL9-1524-T-02-FJV Single TX 1x9 2.5G 1550nm 2km FC C
    EOL9-1324-T-02-IFJV Single TX 1x9 2.5G 1310nm 2km FC I
    EOL9-1524-T-02-IFJV Single TX 1x9 2.5G 1550nm 2km FC I
    EOL9-1324-T-02-KV Single TX 1x9 2.5G 1310nm 2km SC C
    EOL9-1524-T-02-KV Single TX 1x9 2.5G 1550nm 2km SC C
    EOL9-1324-T-02-IKV Single TX 1x9 2.5G 1310nm 2km SC I
    EOL9-1524-T-02-IKV Single TX 1x9 2.5G 1550nm 2km SC I
    EOL9-1312-T-60-K Single TX 1x9 1.25G 1310nm 60km SC C
    EOL9-1512-T-60-K Single TX 1x9 1.25G 1550nm 60km SC C
    EOL9-1312-T-60-IK Single TX 1x9 1.25G 1310nm 60km SC I
    EOL9-1512-T-60-IK Single TX 1x9 1.25G 1550nm 60km SC I
    EOL9-1303-T-20-K Single TX 1x9 155M 1310nm 20km SC C
    EOL9-1503-T-60-K Single TX 1x9 155M 1550nm 60km SC C
    EOL9-1303-T-60-IK Single TX 1x9 155M 1310nm 60km SC I
    EOL9-1503-T-60-IK Single TX 1x9 155M 1550nm 60km SC I
    EOL9-1303-T-A-K Single TX 1x9 155M 1310nm 100km SC C
    EOL9-1503-T-A-K Single TX 1x9 155M 1550nm 100km SC C
    EOL9-1303-T-A-IK Single TX 1x9 155M 1310nm 100km SC I
    EOL9-1503-T-A-IK Single TX 1x9 155M 1550nm 100km SC I
    EOL9-1304-T-60-K Single TX 1x9 300M 1310nm 60km SC C
    EOL9-1504-T-60-K Single TX 1x9 300M 1550nm 60km SC C
    EOL9-1304-T-60-IK Single TX 1x9 300M 1310nm 60km SC I
    EOL9-1504-T-60-IK Single TX 1x9 300M 1550nm 60km SC I
    EOL9-1312-T-80-K Single TX 1x9 1.25G 1310nm 80km SC C
    EOL9-1512-T-80-K Single TX 1x9 1.25G 1550nm 80km SC C
    EOL9-1312-T-80-IK Single TX 1x9 1.25G 1310nm 80km SC I
    EOL9-1512-T-80-IK Single TX 1x9 1.25G 1550nm 80km SC I
    EOL9-1312-T-A-K Single TX 1x9 1.25G 1310nm 100km SC C
    EOL9-1512-T-A-K Single TX 1x9 1.25G 1550nm 100km SC C
    EOL9-1312-T-A-IK Single TX 1x9 1.25G 1310nm 100km SC I
    EOL9-1512-T-A-IK Single TX 1x9 1.25G 1550nm 100km SC I
    EOL9-1604-T-25QK Single TX 1x9 300M 1590nm 25dB SC C
    EOL9-1604-T-25QIK Single TX 1x9 300M 1590nm 25dB SC I
    EOL9-1604-T-25RK Single TX 1x9 300M 1610nm 25dB SC C
    EOL9-1604-T-25RIK Single TX 1x9 300M 1610nm 25dB SC I
    EOL9-1604-T-340K Single TX 1x9 300M 1550nm 34dB SC C
    EOL9-1604-T-340IK Single TX 1x9 300M 1550nm 34dB SC I
    EOL9-1604-T-34PK Single TX 1x9 300M 1570nm 34dB SC C
    EOL9-1604-T-34PIK Single TX 1x9 300M 1570nm 34dB SC I
    EOL9-1604-T-34QK Single TX 1x9 300M 1590nm 34dB SC C
    EOL9-1604-T-34QIK Single TX 1x9 300M 1590nm 34dB SC I
    EOL9-1612-T-28KK Single TX 1x9 1.25G 1470nm 28dB SC C
    EOL9-1612-T-28KIK Single TX 1x9 1.25G 1470nm 28dB SC I
    EOL9-1612-T-28LK Single TX 1x9 1.25G 1490nm 28dB SC C
    EOL9-1612-T-28LIK Single TX 1x9 1.25G 1490nm 28dB SC I
    EOL9-1612-T-28NK Single TX 1x9 1.25G 1530nm 28dB SC C
    EOL9-1612-T-28NIK Single TX 1x9 1.25G 1530nm 28dB SC I
    EOL9-1324-T-20-KV Single TX 1x9 2.5G 1310nm 20km SC C
    EOL9-1524-T-20-KV Single TX 1x9 2.5G 1550nm 20km SC C
    EOL9-1524-T-20-IKV Single TX 1x9 2.5G 1550nm 20km SC I
    EOL9-1324-T-20-IKV Single TX 1x9 2.5G 1310nm 20km SC I
    EOL9-1303-DT-2M-ITK Dual TX 1x9 155M 1310nm 2km ST Plastics I
    EOL9-1503-DT-2M-ITK Dual TX 1x9 155M 1550nm 2km ST Plastics I
    EOL9-1503-DT-2M-TK Dual TX 1x9 155M 1550nm 2km ST Plastics C
    EOL9-1303-DT-2M-TK Dual TX 1x9 155M 1310nm 2km ST Plastics C

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.

    Eoptolink

    Connect

    Contact our global sales team

    This email address is being protected from spambots. You need JavaScript enabled to view it.

    Contacts

    Please complete all required fields!

    Invalid Input
    Invalid Input
    Invalid Input

    Newsletter

    Please complete all required fields!

    Sign up to our Newsletter to be the first to know about latest optical transceiver releases.
    Invalid Input

    Follow Us

    Copyright © 2021 Eoptolink Technology Inc., Ltd. All rights reserved.
    X

    Main Menu

    • Product solutions
      • 1.6T
      • 800G
      • 400G
      • 200G
      • 100G
      • 50G
      • 40G
      • 25G
      • 10G
      • Lower than 10G
      • xPON
      • Other
      • OSA
    • About Us
    • Newsroom
    • Support
    • Partners
