50G

  1. You are here:
  2. Home
  3. Product solutions
  4. 50G
  5. 50G SFP56 AOC

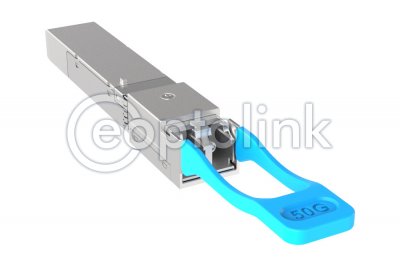

SFP56 50G LR
SFP56 50G LR
1 / 4
SFP56 50G FR
2 / 4
SFP56 50G DR
3 / 4

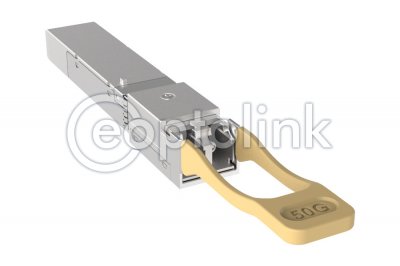

SFP56 50G SR
4 / 4

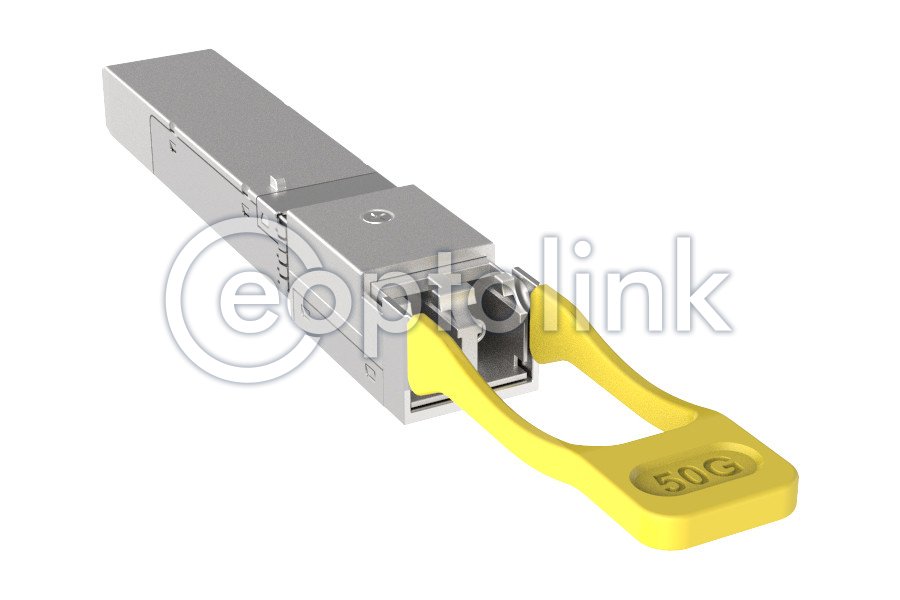

50G SFP56

Eoptolink's 50G SFP56 transceivers are addressing the technical challenges of achieving high speed and low cost datacenter. They are using 50Gb/s PAM4 channels to achieve a 50GE connectivity suitable for switch interconnectivity. Comply with 802.3cd.

    • Supports 53.125Gb/s
    • Single 3.3V Power Supply
    • SFP56 MSA Compliant
    • 53.125Gb/s (PAM4) electrical and optical interface
    • Standard 0°C to 70°C or Industrial -45°C to 85°C case operation temperature rage
    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLP-8550G-02 SFP56 SR 53.125Gbps 850nm 100m LC C
    EOLP-1350G-02 SFP56 FR 53.125Gbps 1310nm 2km LC C
    EOLP-1350G-02-I SFP56 FR 53.125Gbps 1310nm 2km LC I
    EOLP-1350G-10 SFP56 LR 53.125Gbps 1310nm 10km LC C
    EOLP-1350G-10-I SFP56 LR 53.125Gbps 1310nm 10km LC I
    EOLP-1350G-20 SFP56 LR 53.125Gbps 1310nm 20km LC C
    EOLP-1350G-40 SFP56 ER 53.125Gbps 1310nm 40km LC C
    EOLP-1350G-40-I SFP56 ER 53.125Gbps 1310nm 40km LC I

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
