The Eoptolink BIDI 4G series is small form factor pluggable module for 4x/2x/1x Fibre Channel and 1000BASE-BX Gigabit Ethernet single fiber communications. It is with the SFP 20-pin connector to allow hot plug capability. The transmitter section uses class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
1 / 2
2 / 2

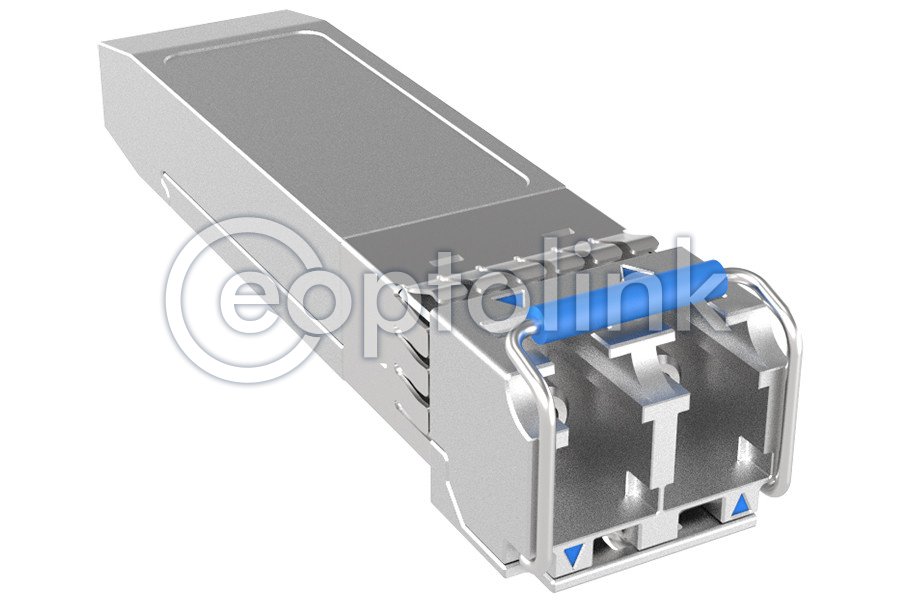

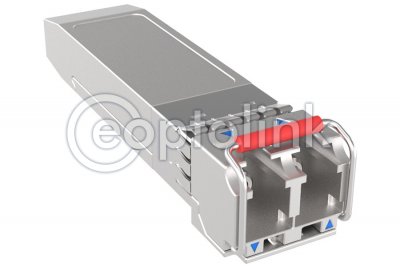

4G SFP
- Fiber Bi-Directional SFP Optical Transceiver
- Up to 4.25 Gb/s
- Compliant with Fibre Channel FC-PI 400/200/100
- Compliant with IEEE 802.3ah-2004 1000BASE-BX
- Simplex LC Connector or SC connector
- AC/AC Coupling according to MSA
- Single +3.3 V Power Supply
- RoHS Compliant
- 0 to 70C, -10 to 85C or -40 to 85C Case Operation Temperature Ranges
- Class 1 Laser International Safety Standard IEC 60825 Compliant
- Multi Rate Fiber Channel
- 1000Base-LX Ethernet
- SONET / SDH Equipment Interconnect
- Storage Area Network(SAN)
- Other Optical Link
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLS-8548-02 | SFP 4G FC | ≤ 4.25Gbps | 850nm | 150m | LC | C/I |
| EOLS-1348-05-D | SFP 4G FC | ≤ 4.25Gbps | 1310nm | 5km | LC | C/I |
| EOLS-1348-10-D | SFP 4G FC | ≤ 4.25Gbps | 1310nm | 10km | LC | C/I |
| EOLS-1348-20-D | SFP 4G FC | ≤ 4.25Gbps | 1310nm | 20km | LC | C/I |
| EOLS-1348-30-D | SFP 4G FC | ≤ 4.25Gbps | 1310nm | 30km | LC | C/I |
| EOLS-1548-40-D | SFP 4G FC | ≤ 4.25Gbps | 1550nm | 40km | LC | C/I |
| EOLS-1548-80-D | SFP 4G FC | ≤ 4.25Gbps | 1550nm | 80km | LC | C/I |
