200G

  1. You are here:
  2. Home
  3. Product solutions
  4. 200G
  5. 200G QSFP56
CFP2 200G ER4
CFP2 200G ER4
1 / 2
CFP2 200G LR4
2 / 2

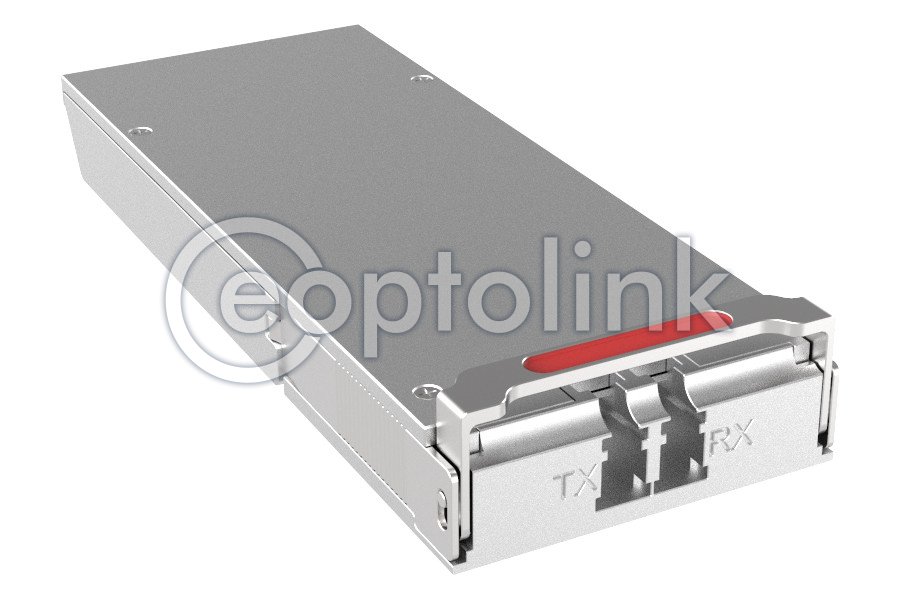

200G CFP2

Eoptolink’s 200G PAM4 CFP2 transceiver module is designed for 200 Gigabit Ethernet links over 10km/40km single mode fiber. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP2 MSA.

    • Support 4x53.125Gbps PAM4 optical interface
    • Support 8x26.5625G NRZ or 4x53.125Gbps PAM4 electrical interface
    • Up to 10km/40km over SMF
    • RoHS compliant
    • Duplex LC receptacles
    • I2C interface with integrated Digital Diagnostic Monitoring
    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLC-162HG-C-10-LA CFP2 200G PAM4 212.5Gbps LAN-WDM 10km LC C
    EOLC-162HG-C-40-LA CFP2 200G PAM4 212.5Gbps LAN-WDM 40km LC C

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
