QSFP56-DD 400G AOC
1 / 1

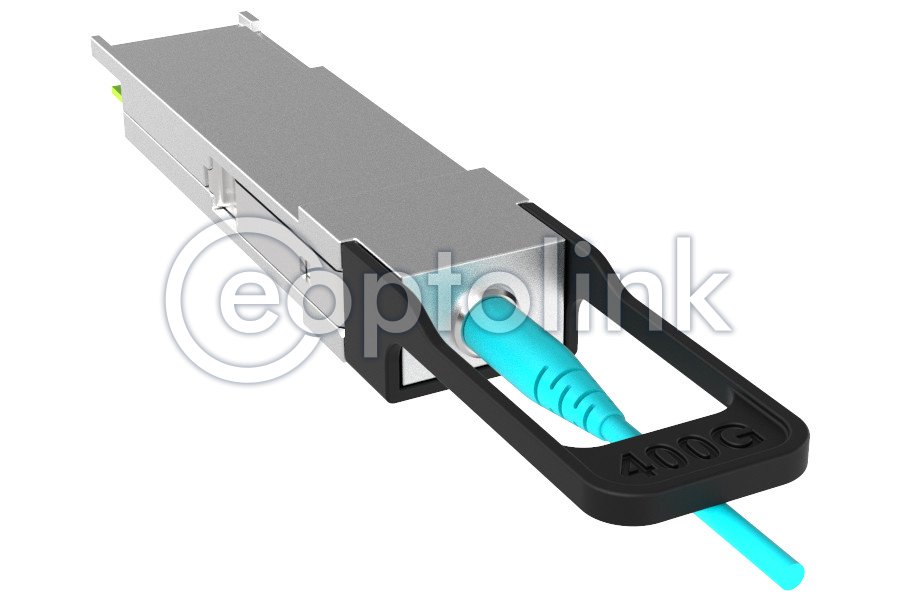

400G QSFP56-DD AOC

Eoptolink 400G AOCs offer a high performance and cost effective solution for short reach interconnections

    • Supports 425Gb/s
    • Single 3.3V Power Supply
    • QSFP-DD MSA Compliant
    • 8x53.125Gb/s(PAM4) electrical interface
    • Commercial case temperature range of 0°C to 70°C
    • CMIS 4.0 support
    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLD-4HG-PCT-XX-XX QSFP-DD 400G AOC 400GbE 850nm 1-30m NA C
