100G

  1. You are here:
  2. Home
  3. Product solutions
  4. 100G
CFP4
1 / 1

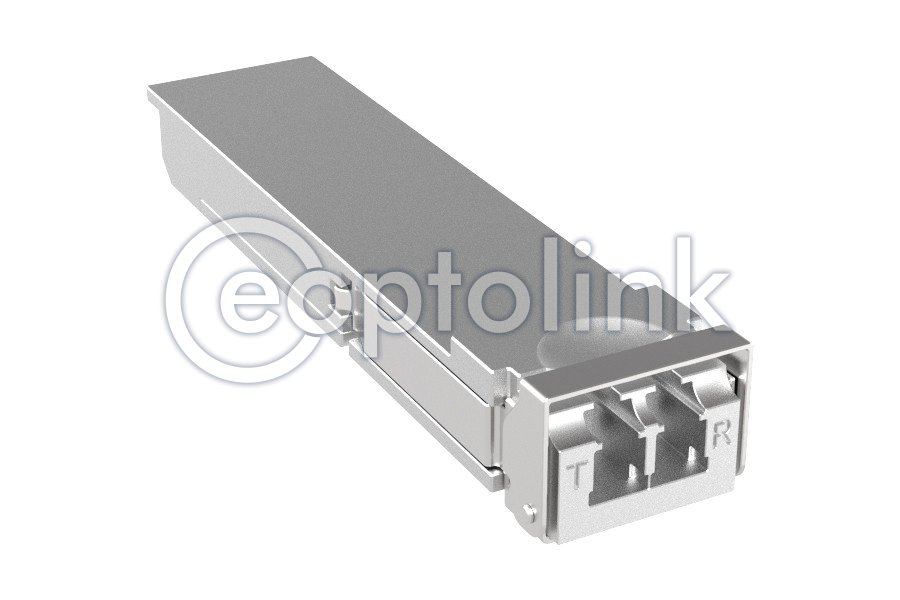

100G CFP4

Eoptolink CFP4-100GBASE-LR4 and CFP4-100GBASE-ER4 module supports a link length of 10, 20 and 40km on standard single-mode fiber (SMF, G.652). 100 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.

    • Supports 103Gbps and 112Gbps aggregate bit rates
    • Single 3.3V Power Supply and Power dissipation < 5.5W
    • Up to 10km, 40km transmission on SMF
    • Hot-Pluggable CFP4 Footprint Duplex LC Connector Interface
    • Class 1 FDA and IEC60825-1 Laser Safety Compliant
    • RoHS Compliant
    • Operating Case Temperature Standard: -5°C~+75°C
    • Compliant with CFP4 MSA Specification
    • MDIO interface with integrated Digital Diagnostic Monitoring
    • No external reference clock
    • OTU4 4I1-9D1F
    • 100GBASE-LR4 and 100GBASE-ER4 Ethernet
    • Data center
    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLC-161HG-S-10-L1A CFP4 LR4 103/112Gbps LAN-WDM 10km LC C
    EOLC-161HG-S-20-L1A CFP4 LR4 103/112Gbps LAN-WDM 20km LC C
    EOLC-161HG-S-40-L7 CFP4 ER4 103Gbps LAN-WDM 40km LC C

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
