SFP+ 10G DAC
1 / 1

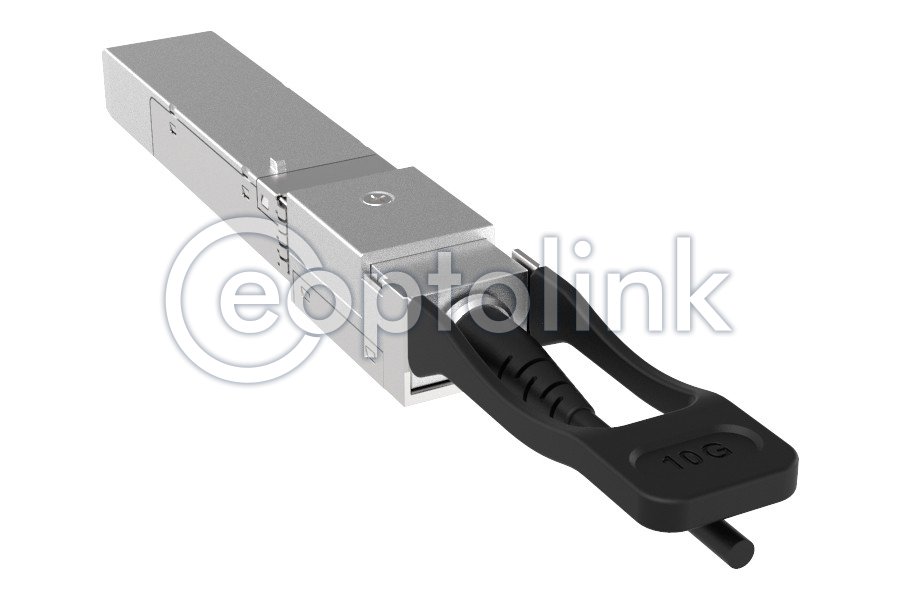

10G SFP+ DAC

Eoptolink SFP+ direct attach copper and optical cable assemblies provide a cost-effective solution over fiber optics in short reach applications. The design allows for serial data transmission up to 10Gbps in each direction. Low power consumption helps make the SFP+ copper cable assembly an economical solution for within rack or rack-to-rack applications.

    • Supports serial data rates up to 10Gbps
    • Low cost
    • Low power consumption
    • Enhanced EMI suppression
    • Pull-to-release retractable pin latch design

    SFP+ Twinax CLB series

    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLP-96-C-H-30P SFP+ DAC 30AWG Passive Up to 10.5G N/A 0.5m N/A C
    EOLP-96-C-01-30P SFP+ DAC 30AWG Passive Up to 10.5G N/A 1m N/A C
    EOLP-96-C-02-30P SFP+ DAC 30AWG Passive Up to 10.5G N/A 2m N/A C
    EOLP-96-C-03-30P SFP+ DAC 30AWG Passive Up to 10.5G N/A 3m N/A C
    EOLP-96-C-H-24P SFP+ DAC 24AWG Passive Up to 10.5G N/A 0.5m N/A C
    EOLP-96-C-01-24P SFP+ DAC 24AWG Passive Up to 10.5G N/A 1m N/A C
    EOLP-96-C-02-24P SFP+ DAC 24AWG Passive Up to 10.5G N/A 2m N/A C
    EOLP-96-C-03-24P SFP+ DAC 24AWG Passive Up to 10.5G N/A 3m N/A C
    EOLP-96-C-04-24P SFP+ DAC 24AWG Passive Up to 10.5G N/A 4m N/A C
    EOLP-96-C-05-24P SFP+ DAC 24AWG Passive Up to 10.5G N/A 5m N/A C
    EOLP-96-C-06-24P SFP+ DAC 24AWG Passive Up to 10.5G N/A 6m N/A C
    EOLP-96-C-07-24P SFP+ DAC 24AWG Passive Up to 10.5G N/A 7m N/A C
    EOLP-96-C-01-30 SFP+ DAC 30AWG Active Up to 10.5G N/A 1m N/A C
    EOLP-96-C-03-30 SFP+ DAC 30AWG Active Up to 10.5G N/A 3m N/A C
    EOLP-96-C-05-30 SFP+ DAC 30AWG Active Up to 10.5G N/A 5m N/A C
    EOLP-96-C-07-28 SFP+ DAC 28AWG Active Up to 10.5G N/A 7m N/A C
    EOLP-96-C-10-24 SFP+ DAC 24AWG Active Up to 10.5G N/A 10m N/A C

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.

    SFP+ Twinax C series

    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLP-96-C-H-30P SFP+ DAC 30AWG Passive Up to 10.5G N/A 0.5m N/A C
    EOLP-96-C-01-30P SFP+ DAC 30AWG Passive Up to 10.5G N/A 1m N/A C
    EOLP-96-C-02-30P SFP+ DAC 30AWG Passive Up to 10.5G N/A 2m N/A C
    EOLP-96-C-03-30P SFP+ DAC 30AWG Passive Up to 10.5G N/A 3m N/A C
    EOLP-96-C-H-24P SFP+ DAC 24AWG Passive Up to 10.5G N/A 0.5m N/A C
    EOLP-96-C-01-24P SFP+ DAC 24AWG Passive Up to 10.5G N/A 1m N/A C
    EOLP-96-C-02-24P SFP+ DAC 24AWG Passive Up to 10.5G N/A 2m N/A C
    EOLP-96-C-03-24P SFP+ DAC 24AWG Passive Up to 10.5G N/A 3m N/A C
    EOLP-96-C-04-24P SFP+ DAC 24AWG Passive Up to 10.5G N/A 4m N/A C
    EOLP-96-C-05-24P SFP+ DAC 24AWG Passive Up to 10.5G N/A 5m N/A C
    EOLP-96-C-06-24P SFP+ DAC 24AWG Passive Up to 10.5G N/A 6m N/A C
    EOLP-96-C-07-24P SFP+ DAC 24AWG Passive Up to 10.5G N/A 7m N/A C
    EOLP-96-C-01-30 SFP+ DAC 30AWG Active Up to 10.5G N/A 1m N/A C
    EOLP-96-C-03-30 SFP+ DAC 30AWG Active Up to 10.5G N/A 3m N/A C
    EOLP-96-C-05-30 SFP+ DAC 30AWG Active Up to 10.5G N/A 5m N/A C
    EOLP-96-C-07-28 SFP+ DAC 28AWG Active Up to 10.5G N/A 7m N/A C
    EOLP-96-C-10-24 SFP+ DAC 24AWG Active Up to 10.5G N/A 10m N/A C

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
