Eoptolink QSFP28 Active Optical Cable is a 4-channel optical transceiver, which conforms to QSFP28 MSA and works at the rage of 25Gbps per channel. The AOC conforms to transmission speed required by InfiniBand™ EDR, 100 Gigabit Ethernet (100GBASE-SR4) and enables to transmit maximum 100m. Best for close-range high-speed transmission, for example, between server racks, between servers.
1 / 1

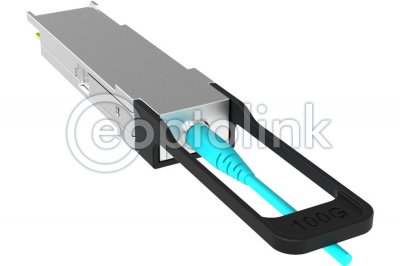

100G QSFP28 AOC
- Compliant to the IEEE 802.3bm(100GBASE-SR4)
- Compliant to the SFF-8665 Specification
- Active Optical Cables Length up to 70m
- VCSEL array transmitter and PIN array receiver
- Low Power dissipation
- Commercial case temperature range of 0°C to 70°C
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLQ-1HG-PCT-XX* | QSFP28 AOC | 100G | 850nm | 1-70M | N/A | C |
| EOLQ-1HG-PCT-XX-8-X | QSFP28 to 4xSFP28 AOC | 100G | 850nm | 1-70M | N/A | C |
*Length measured OM3 fiber. XX denotes the AOC length with unit meter. For example, 01 denotes 1m, 02 denote 2m … 70 denote70m.
