The Eoptolink DWDM SFP+ is specifically designed for carriers and large enterprises that require a scalable, flexible, cost-effective system for multiplexing, transporting and protecting high-speed data, storage, voice and video applications in point-to-point, add/drop, ring, mesh and star network topologies. Digital diagnostic functions are available via an I2C. This module is designed for single mode fiber and operates at a nominal wavelength of 100GHz or 50GHz ITU Grid, C Band DWDM wavelength. A guaranteed minimum optical link budget of 14dB / 23 dB is offered.
1 / 2
2 / 2

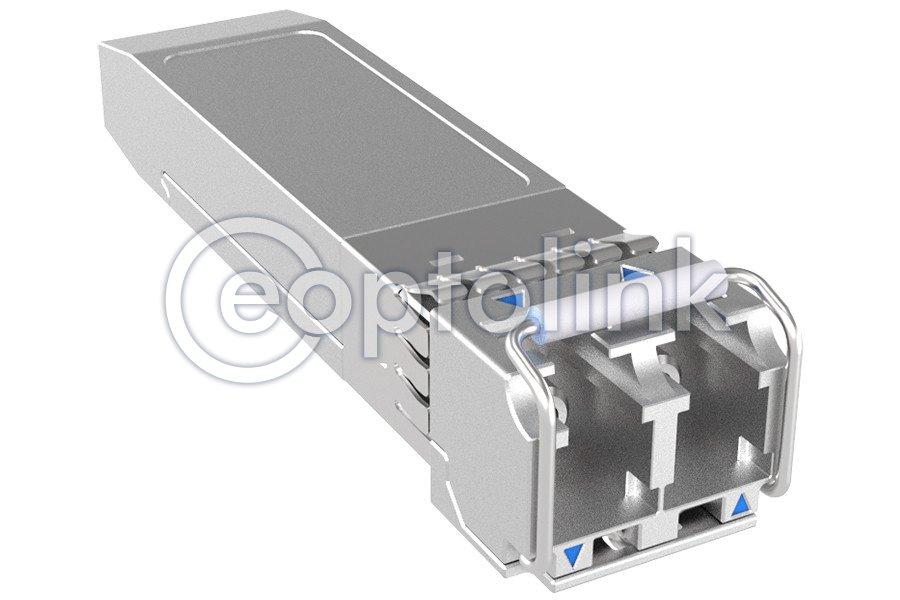

10G DWDM SFP+
- Support 9.95 Gbps to 11.1Gbps
- Can be used with single fiber DWDM system and dual fiber DWDM system
- Complaint to SFP+ MSA
- Compliant to IEEE 802.3ae 10GBASE-ZR and 10GBASE-ER
- Compliant with OC-192 / SDH STM LR2
- Maximum Link Length of 80 km
- Temperature-stabilized DWDM EML Transmitter
- 14dB(15) / 23dB(24) Power Budget at Least
- 100 or 50GHz ITU Grid, C Band
- SFF-8472 Digital Diagnostic Function
- AC/AC Coupling according to MSA
- Single +3.3 V Power Supply
- RoHS 6/6 Compliant
- 0 to 70oC or -40~85C Case operation temperature range
- Class 1 Laser International Safety Standard IEC-60825 Compliant
- 10Gb/s SONET/SDH ITU-T G.959.1 P1L1-2D2
- 10Gb/s SONET/SDH ITU-T G.709
- 10 Gb/s OC-192 / STM-64 LR2
- 10GBASE-ZR and 10GBASE-ER
- 80 km 10G Fibre Channel
- 10G Ethernet with FEC
DWDM SFP+
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLP-1696-14XXN | DWDM SFP+ ER | 9.95~11.1G | DWDM 100GHz | 14dB/40km | LC | C |
| EOLP-1696-14XXIN | DWDM SFP+ ER | 9.95~11.1G | DWDM 100Ghz | 14dB/40km | LC | I |
| EOLP-1696-23XXN | DWDM SFP+ ZR | 9.95~11.1G | DWDM 100GHz | 23dB/80km | LC | C |
| EOLP-1696-23XXIN | DWDM SFP+ ZR | 9.95~11.1G | DWDM 100Ghz | 23dB/80km | LC | I |
| EOLP-1696-14XXXN | DWDM SFP+ ER | 9.95~11.1G | DWDM 50GHz | 14dB/40km | LC | C |
| EOLP-1696-14XXXIN | DWDM SFP+ ER | 9.95~11.1G | DWDM 50GHz | 14dB/40km | LC | I |
| EOLP-1696-23XXXN | DWDM SFP+ ZR | 9.95~11.1G | DWDM 50GHz | 23dB/80km | LC | C |
| EOLP-1696-23XXXIN | DWDM SFP+ ZR | 9.95~11.1G | DWDM 50Ghz | 23dB/80km | LC | I |
For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
DWDM SFP+ CDR
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLP-1696-14XXRN | DWDM SFP+ ER CDR | 9.95~11.1G | DWDM 100GHz | 14dB/40km | LC | C |
| EOLP-1696-23XXRN | DWDM SFP+ ZR CDR | 9.95~11.1G | DWDM 100GHz | 23dB/80km | LC | C |
| EOLP-1696-14XXXRN | DWDM SFP+ ER CDR | 9.95~11.1G | DWDM 50GHz | 14dB/40km | LC | C |
| EOLP-1696-23XXXRN | DWDM SFP+ ZR CDR | 9.95~11.1G | DWDM 50GHz | 23dB/80km | LC | C |
For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
