BIDI 1G SFP
BIDI 1G SFP
1 / 2
BIDI 1G SFP
2 / 2

1G BIDI SFP

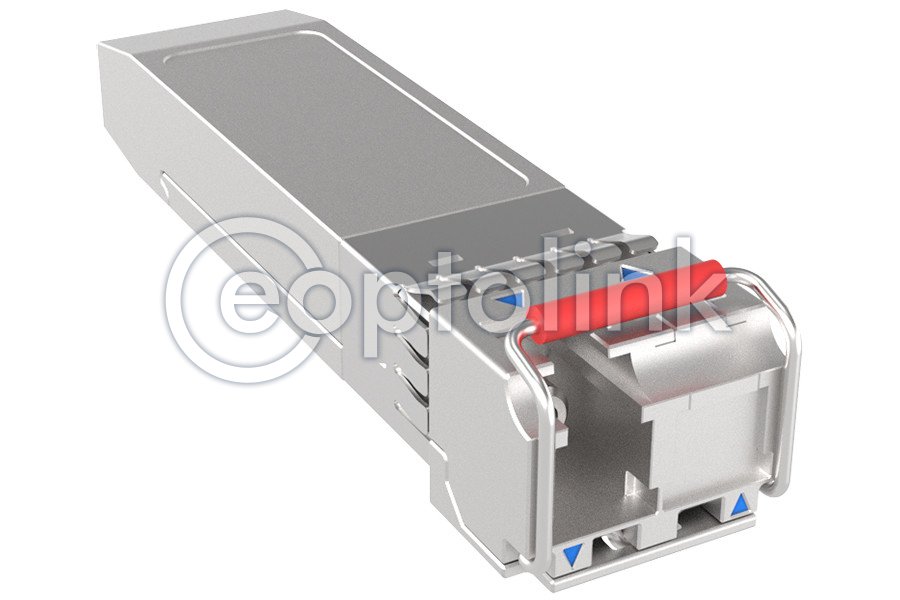

Eoptolink BIDI Fast and Gigabit Ethernet SFP is a compact optical transceiver, module used in optical communications for both telecommunication and data bidirectional communications applications.

    • Fiber Bi-Directional SFP Optical Transceiver
    • Simplex SC or LC Connector
    • 1310/1550, 1490/1550, 1310/1490, 1510/1570 or other BOSA TX/RX combination is avalable on request.
    • up to 160km bidi link
    • AC/AC Coupling according to MSA
    • RoHS Compliant
    • Commercial 0 to 70C or Industrial  -40 to 85C Case Operation Temperature range
    • Class 1 Laser International Safety Standard IEC 60825 Compliant
    • WDMFast Ethernet Links
    • IEEE 802.3ah 1000BASE-BX Applications
    • Fibre Channel Links
    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLS-BI1303-2M-D BIDI FE SFP 100M~155Mbps 1310nm/1550nm 2km LC/SC C/I
    EOLS-BI1503-2M-D BIDI FE SFP 100M~155Mbps 1550nm/1310nm 2km LC/SC C/I
    EOLS-BI1603-10-CLD BIDI FE SFP 100M~155Mbps 1310nm/1490nm 10km LC/SC C/I
    EOLS-BI1603-10-LCD BIDI FE SFP 100M~155Mbps 1490nm/1310nm 10km LC/SC C/I
    EOLS-BI1303-15-D BIDI FE SFP 100M~155Mbps 1310nm/1550nm 15km LC/SC C/I
    EOLS-BI1503-15-D BIDI FE SFP 100M~155Mbps 1550nm/1310nm 15km LC/SC C/I
    EOLS-BI1603-20-CLD BIDI FE SFP 100M~155Mbps 1310nm/1490nm 20km LC/SC C/I
    EOLS-BI1603-20-LCD BIDI FE SFP 100M~155Mbps 1490nm/1310nm 20km LC/SC C/I
    EOLS-BI1303-40-D BIDI FE SFP 100M~155Mbps 1310nm/1550nm 40km LC/SC C/I
    EOLS-BI1503-40-D BIDI FE SFP 100M~155Mbps 1550nm/1310nm 40km LC/SC C/I
    EOLS-BI1603-40-CLD BIDI FE SFP 100M~155Mbps 1310nm/1490nm 40km LC/SC C/I
    EOLS-BI1603-40-LCD BIDI FE SFP 100M~155Mbps 1490nm/1310nm 40km LC/SC C/I
    EOLS-BI1303-80-D BIDI FE SFP 100M~155Mbps 1310nm/1550nm 80km LC/SC C/I
    EOLS-BI1503-80-D BIDI FE SFP 100M~155Mbps 1550nm/1310nm 80km LC/SC C/I
    EOLS-BI1603-29XXD BIDI FE SFP 100M~155Mbps CWDM/CWDM 29DB LC/SC C/I
    EOLS-BI1603-34XXD BIDI FE SFP 100M~155Mbps CWDM/CWDM 34DB LC/SC C/I
    EOLS-BI1603-36XXD BIDI FE SFP 100M~155Mbps CWDM/CWDM 36DB LC/SC C/I
    EOLS-BI1312-M-D BIDI GE SFP up to 1.25G 1310nm/1550nm 1km LC/SC C/I
    EOLS-BI1512-M-D BIDI GE SFP up to 1.25G 1550nm/1310nm 1km LC/SC C/I
    EOLS-BI1312-M-CLD BIDI GE SFP up to 1.25G 1310nm/1490nm 550nm LC/SC C/I
    EOLS-BI1512-M-LCD BIDI GE SFP up to 1.25G 1490nm/1310nm 550nm LC/SC C/I
    EOLS-BI1312-03-D BIDI GE SFP up to 1.25G 1550nm/1310nm 3km LC/SC C/I
    EOLS-BI1512-03-D BIDI GE SFP up to 1.25G 1550nm/1310nm 3km LC/SC C/I
    EOLS-BI1612-03-CL BIDI GE SFP up to 1.25G 1310nm/1490nm 4km LC/SC C/I
    EOLS-BI1612-03-LC BIDI GE SFP up to 1.25G 1490nm/1310nm 4km LC/SC C/I
    EOLS-BI1312-10-D BIDI GE SFP up to 1.25G 1310nm/1550nm 10km LC/SC C/I
    EOLS-BI1512-10-D BIDI GE SFP up to 1.25G 1550nm/1310nm 10km LC/SC C/I
    EOLS-BI1612-10-CL BIDI GE SFP up to 1.25G 1310nm/1490nm 10km LC/SC C/I
    EOLS-BI1612-10-LC BIDI GE SFP up to 1.25G 1490nm/1310nm 10km LC/SC C/I
    EOLS-BI1312-20-D BIDI GE SFP up to 1.25G 1310nm/1550nm 20km LC/SC C/I
    EOLS-BI1512-20-D BIDI GE SFP up to 1.25G 1550nm/1310nm 20km LC/SC C/I
    EOLS-BI1612-20-CL BIDI GE SFP up to 1.25G 1310nm/1490nm 20km LC/SC C/I
    EOLS-BI1612-20-LC BIDI GE SFP up to 1.25G 1490nm/1310nm 20km LC/SC C/I
    EOLS-BI1312-40-D BIDI GE SFP up to 1.25G 1310nm/1550nm 40km LC/SC C/I
    EOLS-BI1512-40-D BIDI GE SFP up to 1.25G 1550nm/1310nm 40km LC/SC C/I
    EOLS-BI1612-40-CL BIDI GE SFP up to 1.25G 1310nm/1490nm 40km LC/SC C/I
    EOLS-BI1612-40-LC BIDI GE SFP up to 1.25G 1490nm/1310nm 40km LC/SC C/I
    EOLS-BI1312-60-D BIDI GE SFP up to 1.25G 1310nm/1550nm 60km LC/SC C/I
    EOLS-BI1512-60-D BIDI GE SFP up to 1.25G 1550nm/1310nm 60km LC/SC C/I
    EOLS-BI1612-60-CL BIDI GE SFP up to 1.25G 1310nm/1490nm 60km LC/SC C/I
    EOLS-BI1612-60-LC BIDI GE SFP up to 1.25G 1490nm/1310nm 60km LC/SC C/I
    EOLS-BI1612-19XXD BIDI GE SFP up to 1.25G CWDM/CWDM 19dB LC/SC C/I
    EOLS-BI1612-24XXD BIDI GE SFP up to 1.25G CWDM/CWDM 24dB LC/SC C/I
    EOLS-BI1612-26XXD BIDI GE SFP up to 1.25G CWDM/CWDM 26dB LC/SC C/I
    EOLS-BI1612-28XXD BIDI GE SFP up to 1.25G CWDM/CWDM 28dB LC/SC C/I
    EOLS-BI1612-32XXD BIDI GE SFP up to 1.25G CWDM/CWDM 32dB LC/SC C/I
    EOLS-BI1612-34XXD BIDI GE SFP up to 1.25G CWDM/CWDM 34dB LC/SC C/I

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
