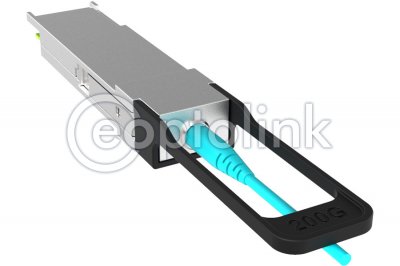

QSFP56 200G AOC
1 / 1

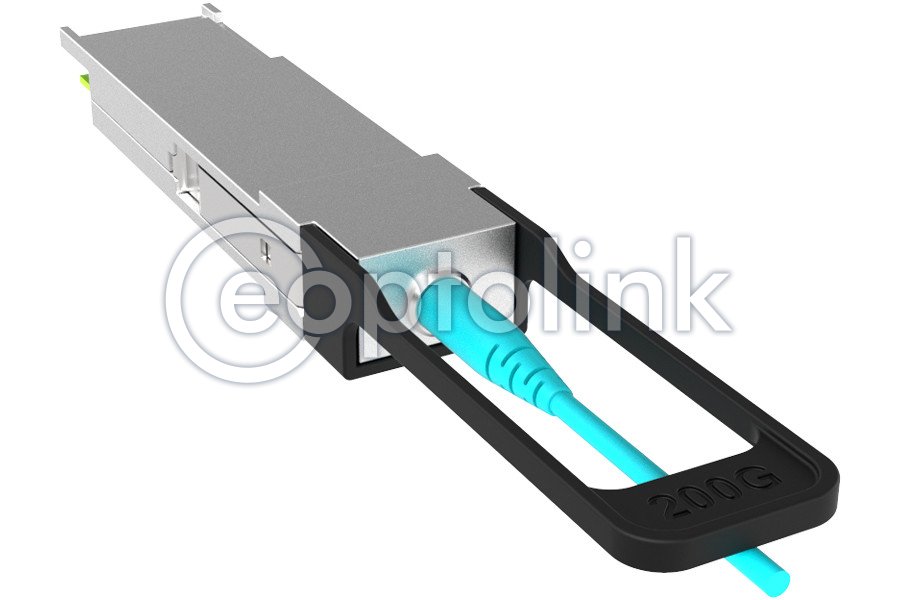

200G QSFP56 AOC

Eoptolink's EOLQ-2HG-PCT-XX 200G QSFP56 AOC is low cost 200G link solution for data-center applications.

    • Supports 212.5Gbps
    • Single 3.3V Power Supply
    • Power dissipation: Commercial version (Each) < 5W
    • 4x26.5625GBd (PAM4) electrical interface
    • Commercial case temperature range of 0°C to 70°C
    • VCSEL transmitter,  PIN and TIA array on the receiver side
    • 200G QSFP56 AOC applications with FEC
    • I2C interface with integrated Digital Diagnostic Monitoring
    • Safety certification: TUV/UL/FDA
    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLQ-2HG-PCT-01 QSFP56 AOC 212.5Gbps 850nm 1m N/A C
    EOLQ-2HG-PCT-03 QSFP56 AOC 212.5Gbps 850nm 3m N/A C
    EOLQ-2HG-PCT-05 QSFP56 AOC 212.5Gbps 850nm 5m N/A C
    EOLQ-2HG-PCT-07 QSFP56 AOC 212.5Gbps 850nm 7m N/A C
    EOLQ-2HG-PCT-10 QSFP56 AOC 212.5Gbps 850nm 10m N/A C
    EOLQ-2HG-PCT-15 QSFP56 AOC 212.5Gbps 850nm 15m N/A C
    EOLQ-2HG-PCT-20 QSFP56 AOC 212.5Gbps 850nm 20m N/A C
    EOLQ-2HG-PCT-30 QSFP56 AOC 212.5Gbps 850nm 30m N/A C

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
