Eoptolink's 25G SFP28 transceivers are suitable for 25G Ethernet and CPRI (option 10) applications, like in 5G mobile networks. The family offers modules for the industrial temp range from -40⁰C to +85⁰C and has excellent EMC/EMI performance with the distance up to 80km.
1 / 4
2 / 4
3 / 4
4 / 4

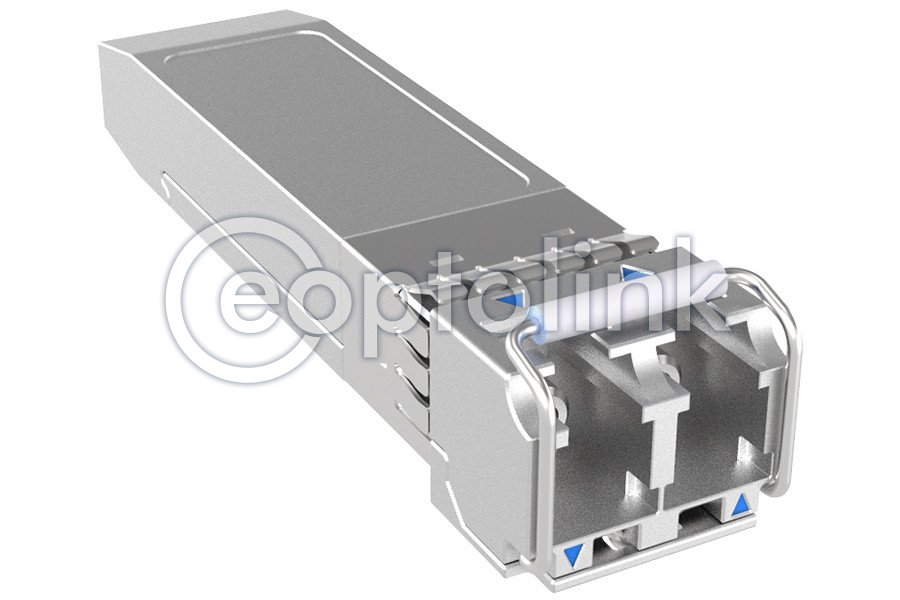

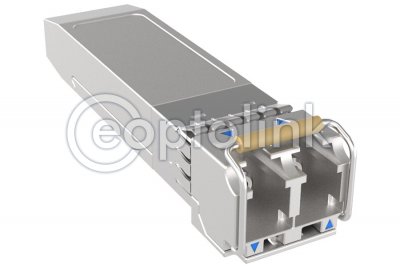

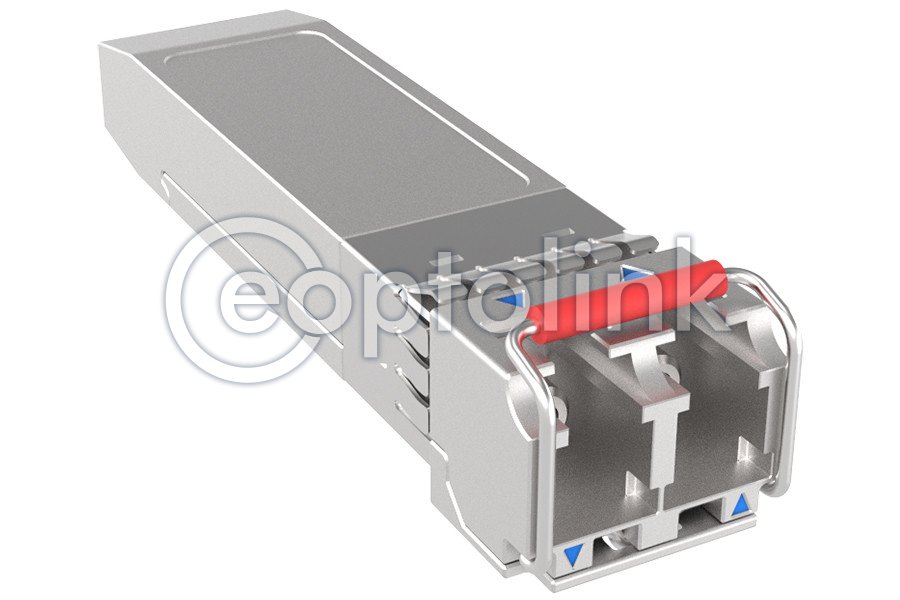

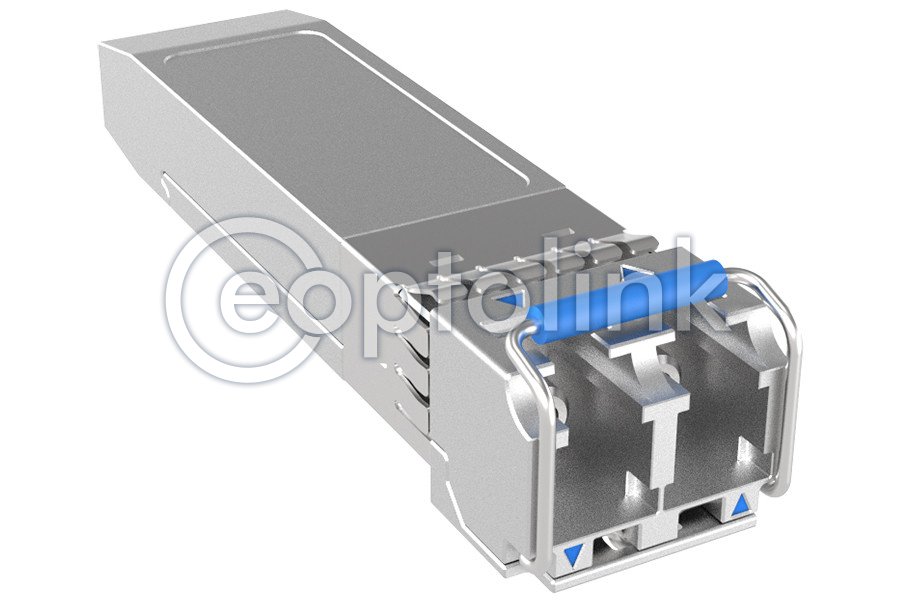

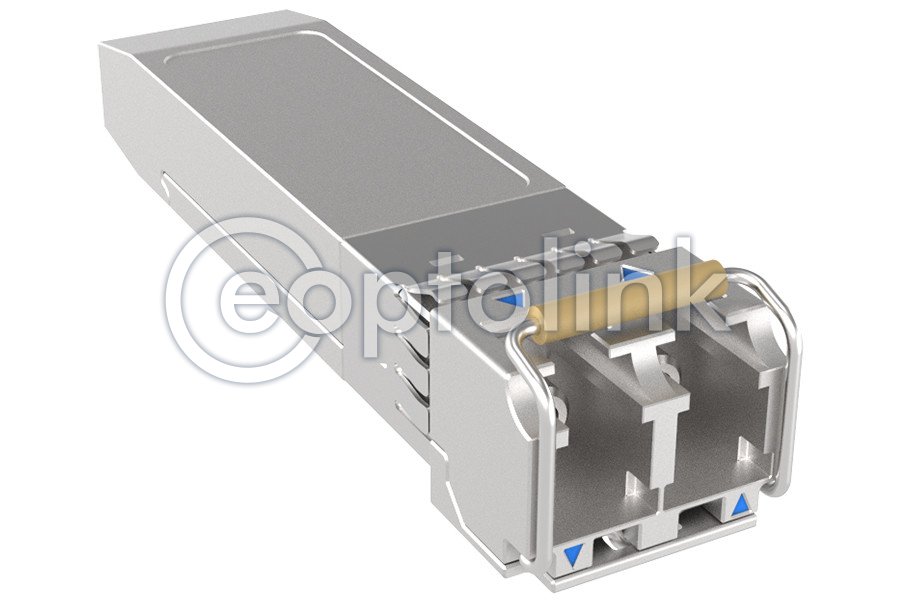

25G SFP28
- Operating Data Rate Support 24.33Gbps and 25.78Gbps with CDR engaged Mode
- Operating Data Rate Support 9.95Gbps and 10.31Gbps with CDR bypassed Mode
- Distances up to 10km, 20km, 30km, 40km and 80km
- Single 3.3V Power Supply
- Duplex LC Connector Interface, Hot Pluggable
- Compliant with MSA SFP+ Specification SFF-8402
- Built-in Dual CDR
- Low Power Dissipation
- Standard 0°C~+70°C or Industrial -40°C~+85C case operation temperature rage
- Operating temperature range: c-temp or i-temp
- 25.78Gb
- CPRI Option 10
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLP-8525G-02-R | SFP28 SR | 25.78G | 850nm | 100m | LC | C |
| EOLP-8525G-02-RI | SFP28 SR | 25.78G | 850nm | 100m | LC | I |
| EOLP-1325G-02-R | SFP28 LR lite | 25.78G | 1310nm | 2km | LC | C |
| EOLP-1325G-10-R | SFP28 LR | 25.78G | 1310nm | 10km | LC | C |
| EOLP-1325G-20-R | SFP28 LR | 25.78G | 1310nm | 20km | LC | C |
| EOLP-1325G-30/40-LR | SFP28 ER | 25.78G | 1295-1320nm | 30/40km | LC | C |
| EOLP-1325G-3H-RI | SFP28 eSR | 25.78G | 1310nm | 300m | LC | I |
| EOLP-1325G-02-RI | SFP28 LR lite | 25.78G | 1310nm | 2km | LC | I |
| EOLP-1325G-10-RI | SFP28 LR | 25.78G | 1310nm | 10km | LC | I |
| EOLP-1325G-10-RIC | SFP28 LR cooled | 25.78G | 1310nm | 10km | LC | I |
| EOLP-1325G-80-RC | SFP28 ZR | 25.78G | 1300nm | 80km | LC | C |
| EOLP-1325G-80-RIC | SFP28 ZR | 25.78G | 1300nm | 80km | LC | I |
*SM test with SM fiber G652, MM test with OM4, WDM test with SM fiber G.652, insert loss of MUX and DE-MUX less than 1.5dB each
