The EOLP-1614G-14XRN series single mode transceiver is small form factor pluggable module for serial optical data communications such as such as 16x/8x/4x Fibre Channel. This module is designed for single mode fiber and operates at a nominal CWDM wavelength from 1470nm to 1610nm, with each step 20nm. A guaranteed optical link budget of 14 dB is offered.
1 / 1

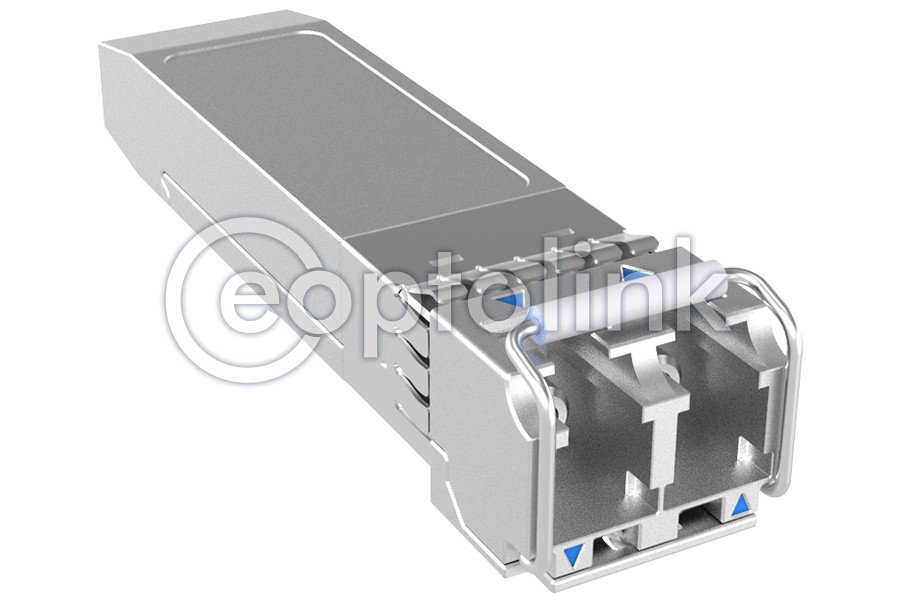

16G CWDM SFP+
- Operating data rate up to 14.025Gbps
- 8-Wavelengths CWDM EML Transmitter from 1470nm to 1610nm, with step 20nm
- 14dB Power Budget
- Single 3.3V Power supply and TTL Logic Interface
- Duplex LC Connector Interface
- Hot Pluggable
- Power Dissipation < 2W
- Compliant with SFF-8431 MSA
- Compliant with SFF-8432 MSA
- Compliant with SFF-8472 MSA
- Compliant with 8G and 4G Fibre Channel
- Operating Case Temperature Standard: 0°C~+70°C
- Safety Certification: TUV/UL/FDA*
- RoHS Compliant
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLP-1614G-14XRN | CWDM SFP+ 16G | 14.025Gbps | CWDM 1470-1610 | 40km | LC | C |
| EOLP-1614G-10-X | CWDM SFP+ 16G | 14.025Gbps | CWDM 1270-1370 | 10km | LC | C |
