8G Fiber channel SFP series transceiver is small form factor pluggable module for serial optical data communications.
1 / 2
2 / 2

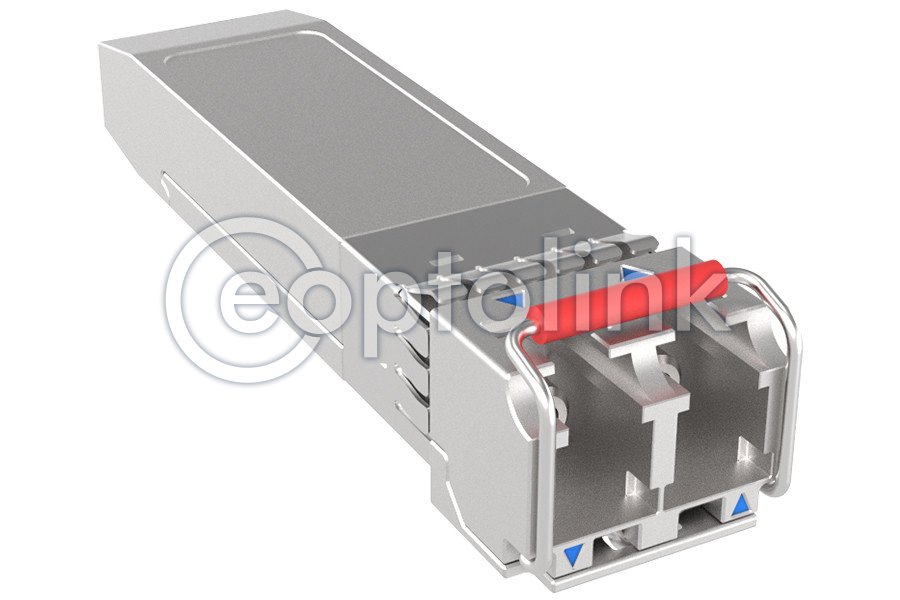

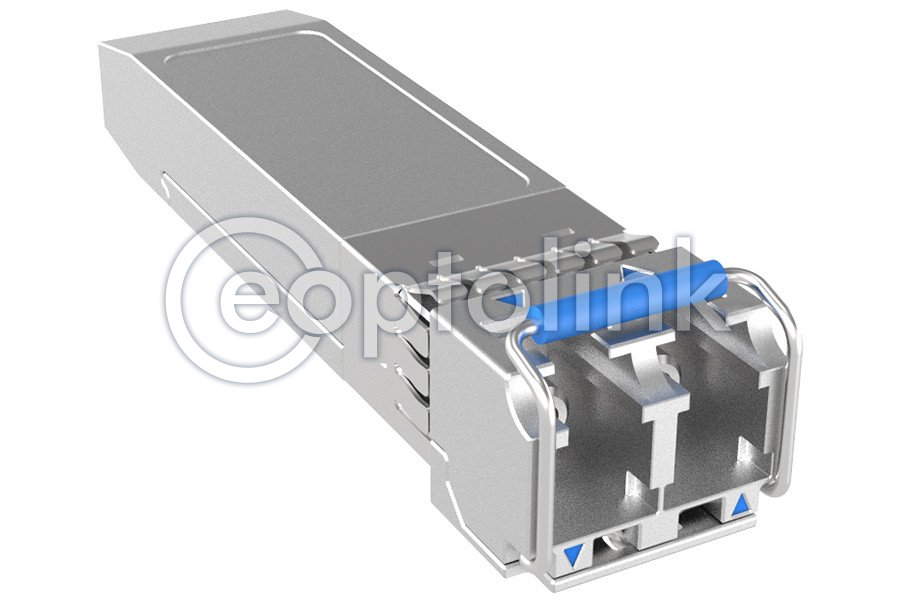

8G SFP
- Duplex SFP Optical Transceiver
- Up to 8.5 Gb/s
- Single +3.3 V Power Supply
- RoHS Compliant
- 0 to 70C or -40 to 85C Case Operation Temperature Ranges
- Class 1 Laser International Safety Standard IEC 60825 Compliant
- 8G Fiber Channel
- OBSAI rates 6.144 Gb/s, 3.072 Gb/s, 1.536 Gb/s, 0.768Gb/s
- CPRI rates 7.373Gb/s, 6.144 Gb/s, 4.915 Gb/s, 2.458 Gb/s, 1.229 Gb/s, 0.614Gb/s
- Other optical links
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLP-8580-02 | SFP+ SR 8G | 0.614~8.5 | 850nm | <300m | LC | C |
| EOLP-8580-02-I | SFP+ SR 8G | 0.614~8.5 | 850nm | <300m | LC | I |
| EOLP-1380-02 | SFP+ LR lite 8G | 0.614~8.5 | 1310nm | 2km | LC | C |
| EOLP-1380-02-I | SFP+ LR lite 8G | 0.614~8.5 | 1310nm | 2km | LC | I |
| EOLP-1380-10 | SFP+ LR 8G | 0.614~8.5 | 1310nm | 10km | LC | C |
| EOLP-1380-10-I | SFP+ LR 8G | 0.614~8.5 | 1310nm | 10km | LC | I |
| EOLP-1380-20 | SFP+ eLR 8G | 0.614~8.5 | 1310nm | 20km | LC | C |
| EOLP-1380-20-I | SFP+ eLR 8G | 0.614~8.5 | 1310nm | 20km | LC | I |
| EOLP-1580-80-N | SFP+ ZR 8G | 0.614~8.5 | 1550nm | 80km | LC | C |
| EOLP-1580-80-IN | SFP+ ZR 8G | 0.614~8.5 | 1550nm | 80km | LC | I |
For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
