400G

  1. You are here:
  2. Home
  3. Product solutions
  4. 400G
  5. 400G LPO QSFP112

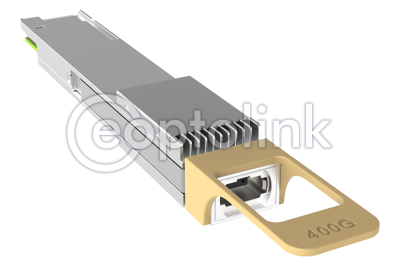

QSFP112 400G VR4
QSFP112 400G VR4
1 / 4

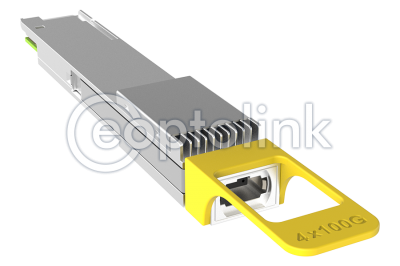

QSFP112 400G DR4
2 / 4

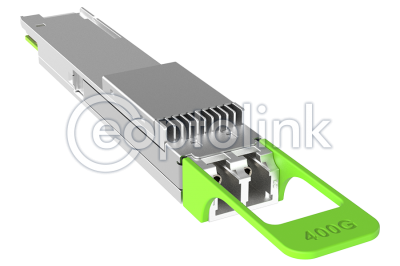

QSFP112 400G FR4
3 / 4

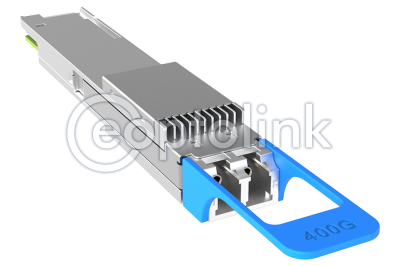

QSFP112 400G LR4
4 / 4

400G QSFP112

Eoptolink QSFP112 400G transceivers are compliant to the latest releases of the QSFP112 MSA, support the 112G-PAM4 electrical and optical signaling. The firmware supports CMIS 4.0 and newer release. We offer transceivers for DR4, FR4, LR4 interfaces. Our vertical integration for optical engines enables leading performance and power consumption. Adoption of 400G QSFP112 will leave a potential way for evolving to 224G/lane speed in the future.

    • Supports 425Gb/s
    • Single 3.3V Power Supply
    • QSFP112 MSA Compliant
    • 4x106.25 Gb/s (PAM4) optical interface
    • 4x106.25 Gb/s (PAM4) electrical interface
    • Commercial case temperature range of 0°C to 70°C
    • CMIS 4.0 or later version.
    Part No. Description Data Rate Wavelength Distance Connector Temp.
    EOLQ-854HG-01-MXX QSFP112 400G VR4 4x100G 400GbE 850nm 30m(OM3)
    50m(OM4)    		 MPO-12 C
    EOLQ-134HG-5H-MXX QSFP112 400G DR4 4x100G 400GbE 1310nm 500m MPO C
    EOLQ-134HG-02-MXX QSFP112 4x100G FR1 4x100G 400GbE 1310nm 2km MPO C
    EOLQ-164HG-02-XX QSFP112 400G FR4 4x100G 400GbE CWDM4 2km Duplex LC C
    EOLQ-164HG-10-XX QSFP112 400G LR4 4x100G 400GbE CWDM4 10km Duplex LC C

    For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
