Eoptolink 200G/lane 800G QSFP-DD transceivers are compliant to the latest releases of the QSFP-DD800. The firmware supports CMIS 5.0 and newer releases. We offer DR4, DR4+, FR4, VR4 and 2FR2 transceivers for different reach and applications.
800G QSFP-DD800 (200G per lane)
- QSFP-DD800 MSA Compliant
- 4x226.6 Gb/s (PAM4) optical interface
- 8x106.25 Gb/s (PAM4) electrical interface
- 0°C to 70°C
- CMIS 5.0 or higher support
Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |

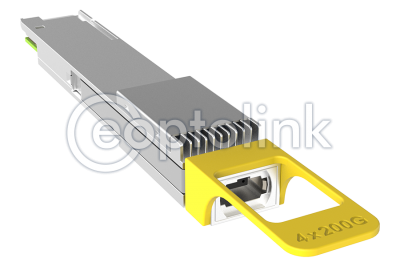

EOLD-138HG-E-5H-XDX | QSFP-DD 800G DR4 | 4x200G, 800GbE | 1311nm | 500m | MPO-12 | C |
EOLD-138HG-E-02-XDX | QSFP-DD 800G DR4+ | 4x200G, 800GbE | 1311nm | 2km | MPO-12 | C |
EOLD-168HG-E-02-XXX EOLD-168HG-E-02-XCX |
QSFP-DD 800G 2FR2 | 4x200G, 2x400GbE | 1291/1311nm | 2km | Dual Duplex LC Dual CS |
C |

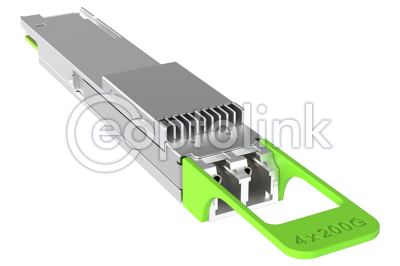

EOLD-168HG-E-02-XPX | QSFP-DD 800G FR4 | 4x200G, 800GbE | CWDM | 2km | Duplex LC | C |
EOLD-858HG-E-01-DXX | QSFP-DD 800G VR4 | 4x200G, 800GbE | 850nm | TBD | MPO-12 | C |
For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
