Eoptolink SFP+ Active Optical Cable (AOC) is a 10Gbps solution to10G Ethernet, and high-performance computing applications. The integrated cable transmits 10Gbps data in each direction over a loose tube fiber with distance up to 100m. The AOC is SFP+ MSA compliance, low power consumption and lightweight.
1 / 1

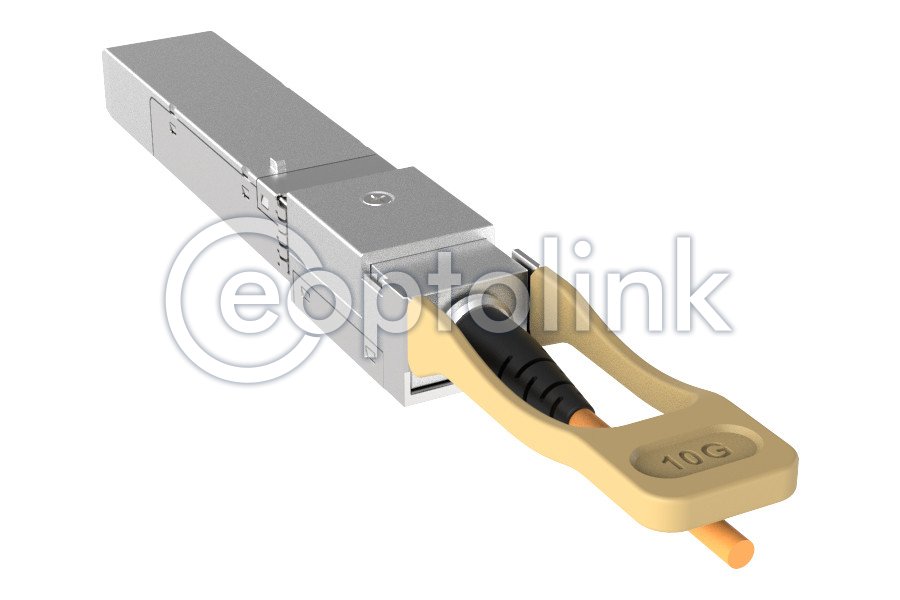

10G SFP+ AOC
- Operating Case Temperature: -5C~+75C
- 10Gb/s serial optical interface
- 850nm high-speed VCSEL and PIN receiver
- Support 10Gb/s transmission distance up to 100
- Meters with OM2 MM fiber
- Single 3.3V power supply
- Mechanical specifications compliant with SFF-8432
- Electrical specifications compliant with SFF-8431
- Support digital diagnostics monitoring for module temperature, Vcc, Rx input power, Tx_Disable and Rx_LOS
- Typical power consumption 200mW
- I2C communication bus
- Hot pluggable
- RoHS-6 compliance
- Safety Certification: TUV/UL/FDA
- RoHS Compliant
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLP-8596-PCT-XX* | SFP+ AOC | 10G | 850nm | 1~100m | N/A | C |
Length measured OM2 fiber. XX denotes the AOC length with unit meter. For example, 01 denotes 1m, 02 denote 2m … 99 denote 99m and 1H denotes 100m.
