The EOLP-1625G-13XXRXC series single mode transceiver is SFP28 module for duplex optical data communications support 25.78Gb/s. This module is designed for single mode fiber and operates at a nominal DWDM wavelength from 1528nm to 1566nm as specified by ITU-T. The EOLP-1625G-20XXXRXC series single mode transceiver is SFP28 module for duplex optical data communications support 25.78Gb/s. This module is designed for single mode fiber and operates at a nominal O-Band DWDM wavelength from 1290nm to 1305nm.
1 / 1

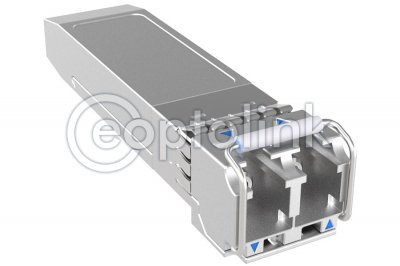

25G DWDM SFP28
- Operating data rate support 24.33Gbps /25.78Gbps
- Available in all C-Band or O-band Wavelengths
- Temperature-Stabilized DWDM EML Transmitter
- Duplex LC Connector
- Power Dissipation With CDR function
- Dispersion tolerance from -200ps/nm to 200ps/nm（10km） and 40km for O-band
- Hot-Pluggable
- Compliant with SFF-8402
- Standard 0°C~+70°C or Industrial -40°C~+85C case operation temperature rage
- Safety Certification: TUV/UL/FDA
- RoHS Compliant
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLP-1625G-13XXRC | DWDM SFP28 | 25.78G | C band DWDM | 10km | LC | C |
| EOLP-1625G-13XXRIC | DWDM SFP28 | 25.78G | C band DWDM | 10km | LC | I |
| EOLP-1625G-20XXXRC | DWDM SFP28 | 25.78G | O band WDM | 40km | LC | C |
| EOLP-1625G-20XXXREC | DWDM SFP28 | 25.78G | O band WDM | 40km | LC | E |
| EOLP-1625G-20XXXRIC | DWDM SFP28 | 25.78G | O band WDM | 40km | LC | I |
X refers to DWDM Wavelength
