Eoptolink SFP+ transceiver are multi-purpose optical modules for 10Gbit/s data transmission applications at 850nm, 1310nm and 1550nm. The transceivers are ideally suited for datacom and storage area network (SAN/NAS) applications based on the IEEE 802.3ae and Fibre Channel standards, Fiber Channel 10G, 8.5G, 4.25G, 2.125G, 1.0625G, 10G BASE-SW/SR/LR/ER, 1000 Base-SX Ethernet, SDH/SONET and Mulirate SFP+ transeivers.
1 / 2
2 / 2

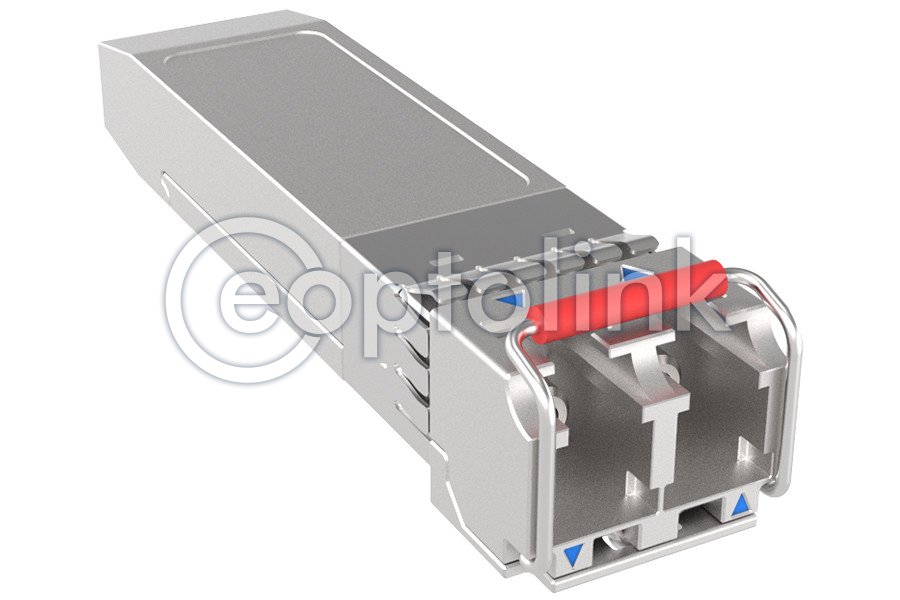

10G SFP+
- Compliant to SFP+ Electrical MSA SFF-8431
- Compliant to SFP+ Mechanical MSA SFF-8432
- Multi rate of up to 11.3Gb/s
- 10G Ethernet compliance or SDH/SONET
- Transmission distance up to 100km (SM fiber)
- Low power consumption
- 0C to +70C / -40~85C case operating temperature range
- Laser Class 1 IEC / CDRH compliant
- RoHS 6/6 compliant
- Compliant with product safety standards
- 10GBASE-SR, LR, ER, ZR, ZX at 10.31 / 11.1Gbps
- SDH/SONET
- 1/10G and Multirate
- 10GBASE-LW at 9.95Gbps
- 1000 Base-LX Ethernet
- 8XFC at 8.5Gbps
- 4XFC at 4.25Gpbs
- 2XFC at 2.125Gpbs
- 1xFC at 1.0625Gbps
- Other optical links
SFP+
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLP-8596-02 | SFP+ SR | 9.95~11.1G | 850nm | <300m | LC | C |
| EOLP-8596-02-I | SFP+ SR | 9.95~11.1G | 850nm | <300m | LC | I |
| EOLP-1396-2M | SFP+ LRM | 9.95~11.1G | 1310nm | <220m | LC | C |
| EOLP-1396-02 | SFP+ LR lite | 9.95~11.1G | 1310nm | 2km | LC | C |
| EOLP-1396-02-I | SFP+ LR lite | 9.95~11.1G | 1310nm | 2km | LC | I |
| EOLP-1396-10 | SFP+ LR | 9.95~11.1G | 1310nm | 10km | LC | C |
| EOLP-1396-10-I | SFP+ LR | 9.95~11.1G | 1310nm | 10km | LC | I |
| EOLP-1396-20 | SFP+ eLR | 9.95~11.1G | 1310nm | 20km | LC | C |
| EOLP-1396-20-I | SFP+ eLR | 9.95~11.1G | 1310nm | 20km | LC | I |
| EOLP-1396-40 | SFP+ ER | 9.95~11.1G | 1310nm | 40km | LC | C |
| EOLP-1396-40-I | SFP+ ER | 9.95~11.1G | 1310nm | 40km | LC | I |
| EOLP-1396-70 | SFP+ eER | 9.95~11.1G | 1310nm | 70km | LC | C |
| EOLP-1596-40-N | SFP+ ER | 9.95~11.1G | 1550nm | 40km | LC | C |
| EOLP-1596-40-IN | SFP+ ER | 9.95~11.1G | 1550nm | 40km | LC | I |
| EOLP-1596-80-N | SFP+ ZR | 9.95~11.1G | 1550nm | 80km | LC | C |
| EOLP-1596-80-IN | SFP+ ZR | 9.95~11.1G | 1550nm | 80km | LC | I |
| EOLP-1596-A-RN | SFP+ eZR | 9.95~11.1G | 1550nm | 100km | LC | C |
For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
SFP+ CDR
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLP-8596-02-R | SFP+ SR CDR | 9.95~10.3G | 850nm | <300m | LC | C |
| EOLP-1396-2M-R | SFP+ LRM CDR | 9.95~10.3G | 1310nm | <220m | LC | C |
| EOLP-1396-02-R | SFP+ LR lite CDR | 9.95~11.1G | 1310nm | 2km | LC | C |
| EOLP-1396-10-R | SFP+ LR CDR | 9.95~11.1G | 1310nm | 10km | LC | C |
| EOLP-1396-10-RM | SFP+ LR CDR | 8~11.1G | 1310nm | 10km | LC | C |
| EOLP-1396-20-R | SFP+ eLR CDR | 9.95~11.1G | 1310nm | 20km | LC | C |
| EOLP-1396-40-R | SFP+ ER CDR | 9.95~11.1G | 1310nm | 40km | LC | C |
| EOLP-1396-40-RM | SFP+ ER CDR | 8~11.1G | 1310nm | 40km | LC | C |
| EOLP-1596-40-RN | SFP+ ER CDR | 9.95~11.1G | 1550nm | 40km | LC | C |
| EOLP-1596-80-RN | SFP+ ZR CDR | 9.95~11.1G | 1550nm | 80km | LC | C |
For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
SFP+ 1/10G
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| EOLP-8596-02-M | SFP+ SR rate select | 1G/10.3G | 850nm | <300m | C | |
| EOLP-8596-02-MI | SFP+ SR rate select | 1G/10.3G | 850nm | <300m | E | |
| EOLP-1396-10-M | SFP+ LR rate select | 1G/10.3G | 1310nm | 10km | C | |
| EOLP-1396-10-MI | SFP+ LR rate select | 1G/10.3G | 1310nm | 10km | I | |
| EOLP-1596-40-M | SFP+ ER rate select | 1G/10.3G | 1550nm | 40km | C |
For the latest specification and samples, please, contact us This email address is being protected from spambots. You need JavaScript enabled to view it.
