EOLT-C96-02 10G BASE-T Copper Small Form Pluggable (SFP) modules are based on the SFP Multi Source Agreement (MSA). It is compliant with the 10G BASE-T,5G Base-T, 2.5G Base-T, 1000BASE-T, 100BASE-TX standards as specified in IEEE STD 802.3an, 802.3ab and 802.3au.
1 / 1

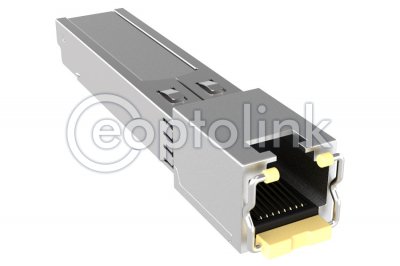

10G Copper SFP+
- Support 10GBASE-T Operation in Host Systems and auto-negotiation to lower speed.
- Support RX_LOS as Link indication function
- Hot-Pluggable SFP Footprint
- Compact RJ-45 Connector Assembly
- Compliant with SFP MSA
- Operating Case Temperature：
- Extended：-10℃~70℃
- Industrial: -40℃~85℃
- Power consumption<2.4W
- 10G BASE-T IEEE 802.3an
- 5GBASE-T 802.3bz
- 2.5GBASE-T 802.3bz
- 1000BASE-T IEEE 802.3ab
- 100BASE-TX IEEE 802.3u
- 5GBASE-T Broadcom MGBASE-T
- 2.5GBASE-T Broadcom MGBASE-T
| Part No. | Description | Data Rate | Media type | Distance | Connector | Temp |
| EOLT-C96-02 | Copper 10G SFP+ | 10G | CAT6A/CAT7 | 30m | RJ45 | E |
| EOLT-C96-02-I | Copper 10G SFP+ | 10G | CAT6A/CAT7 | 30m | RJ45 | I |
